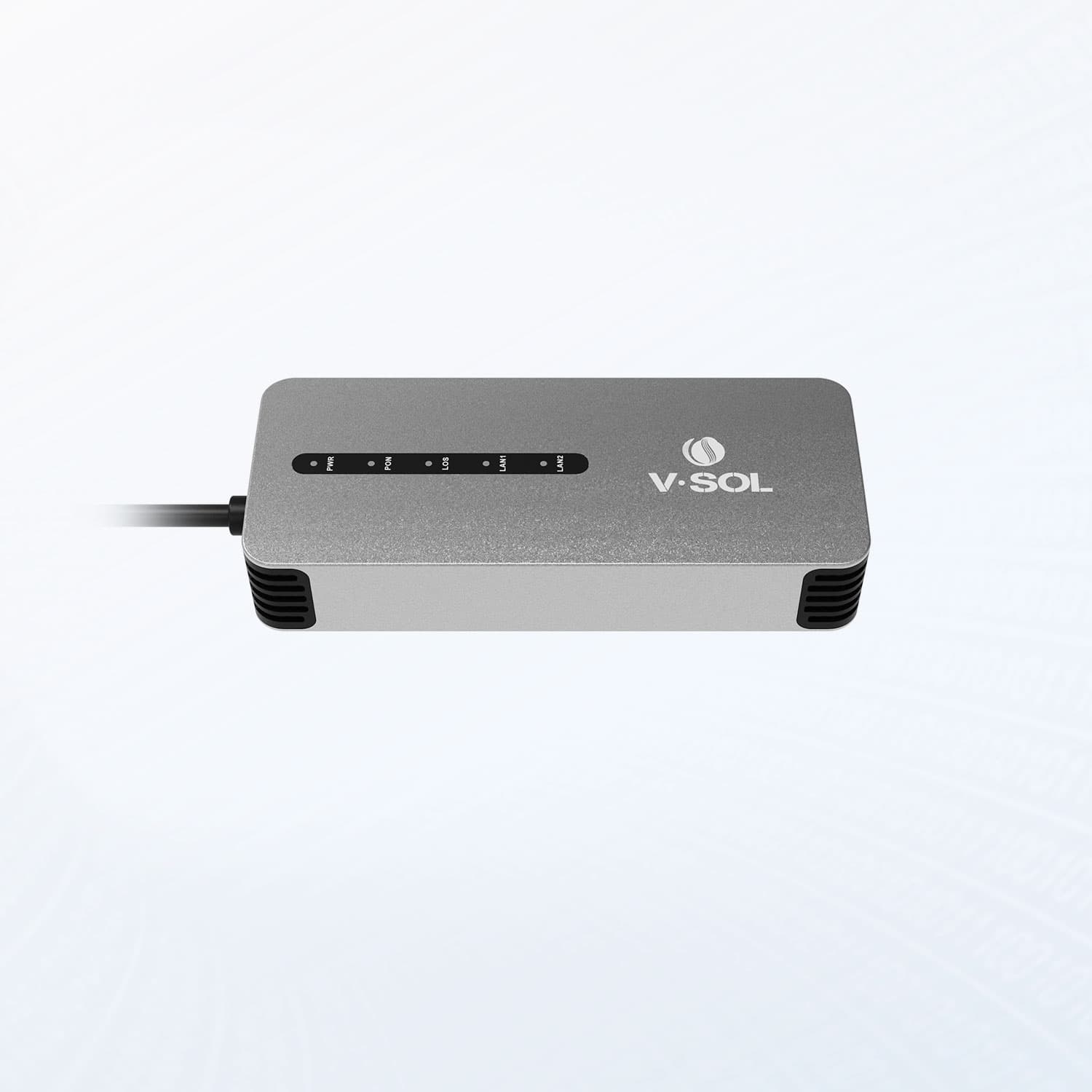

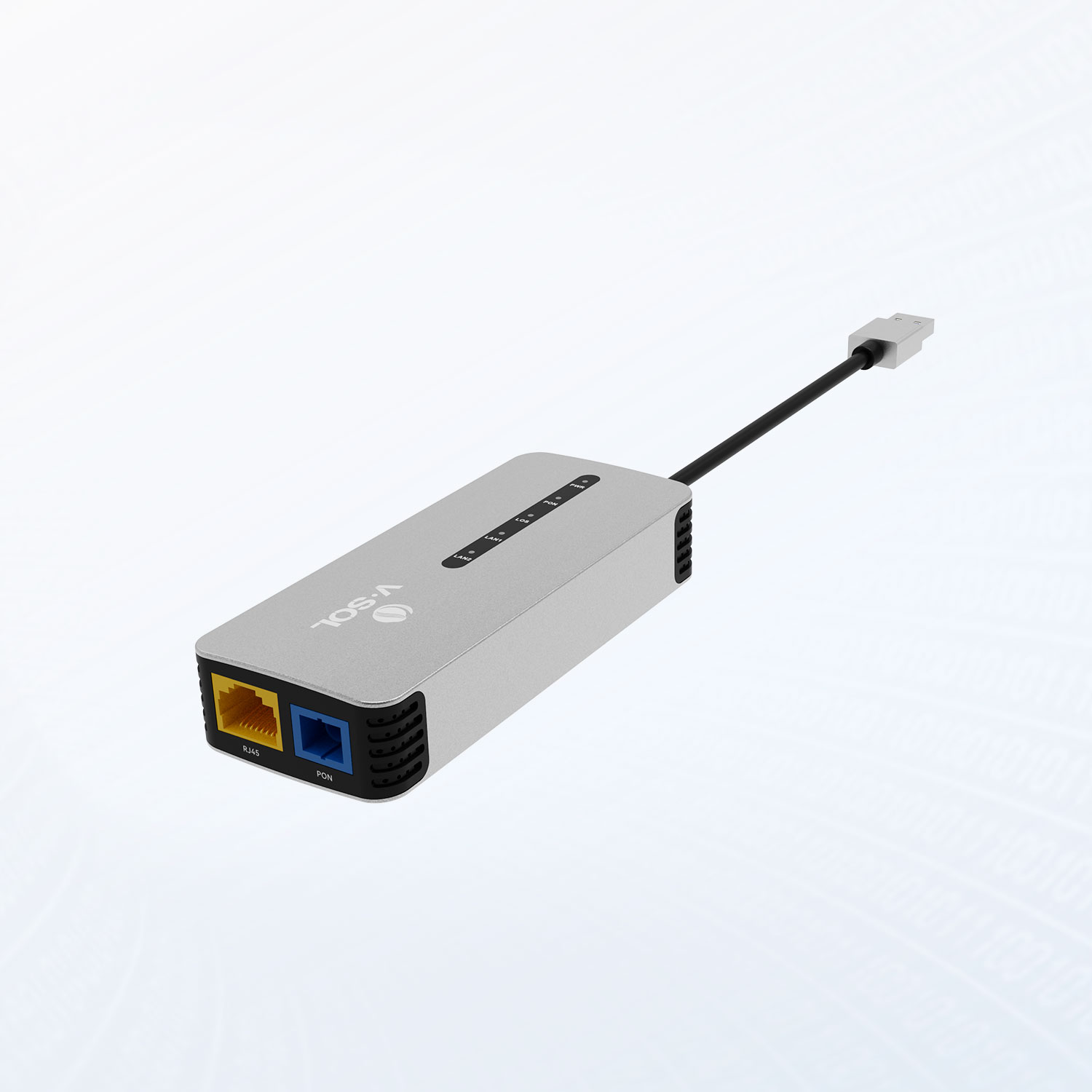

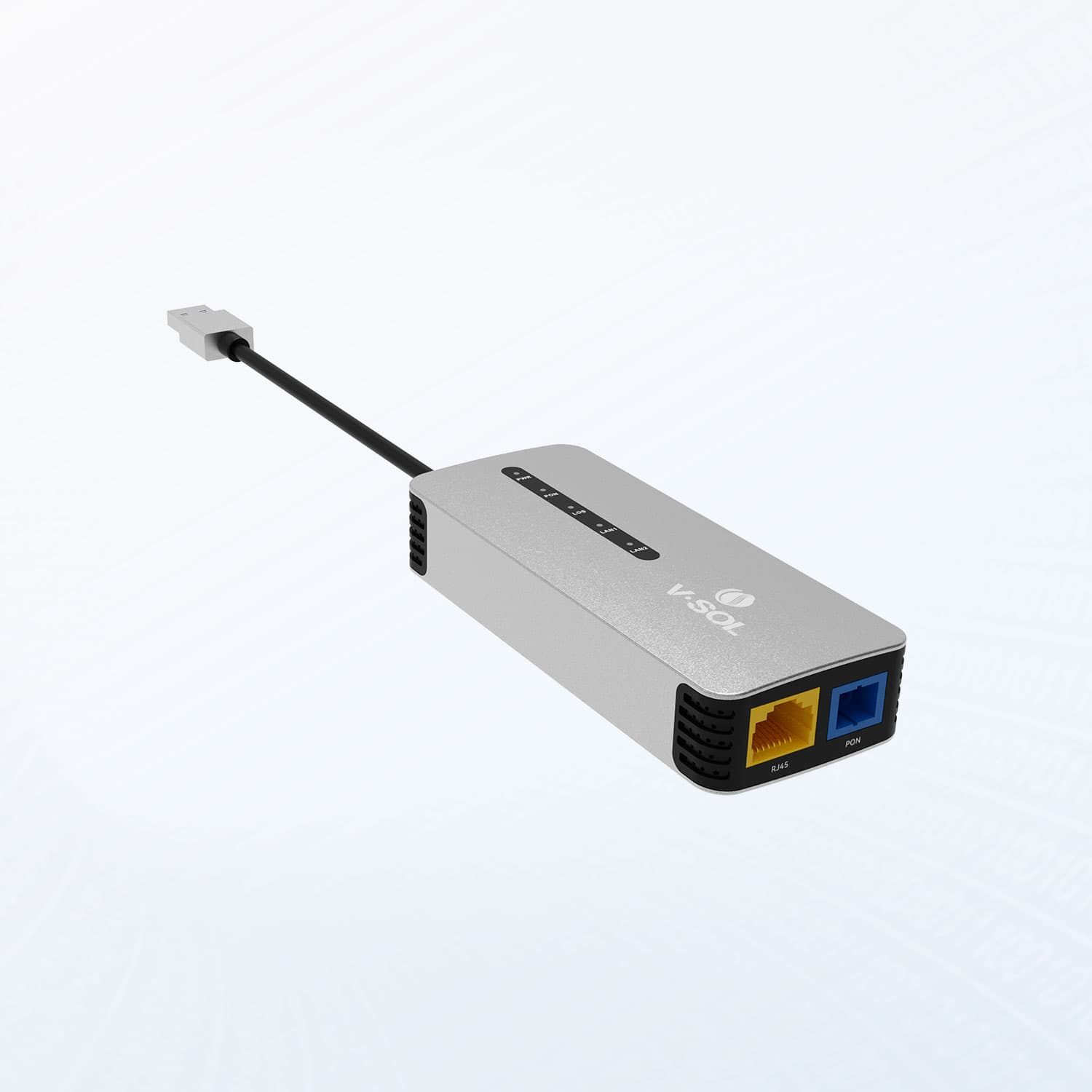

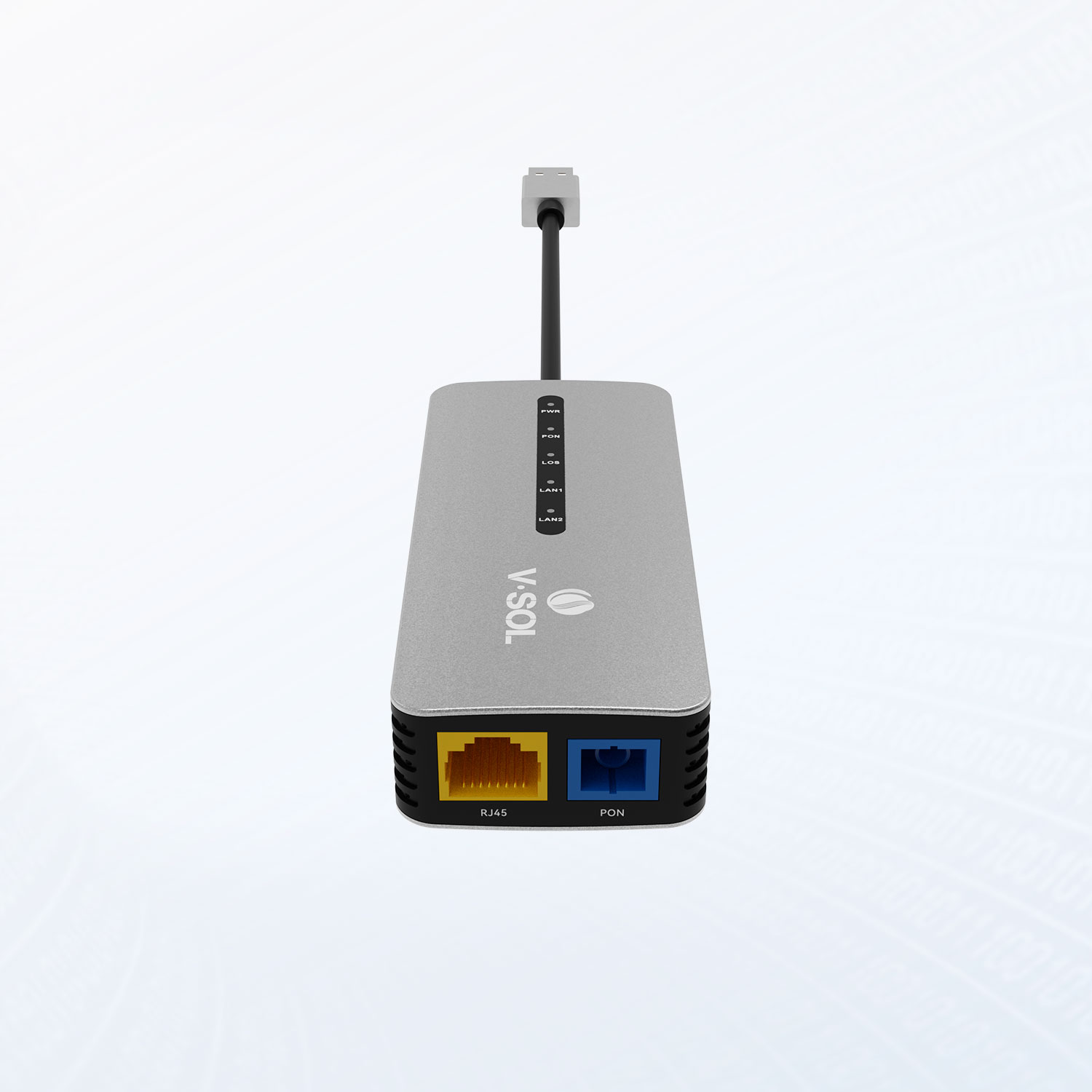

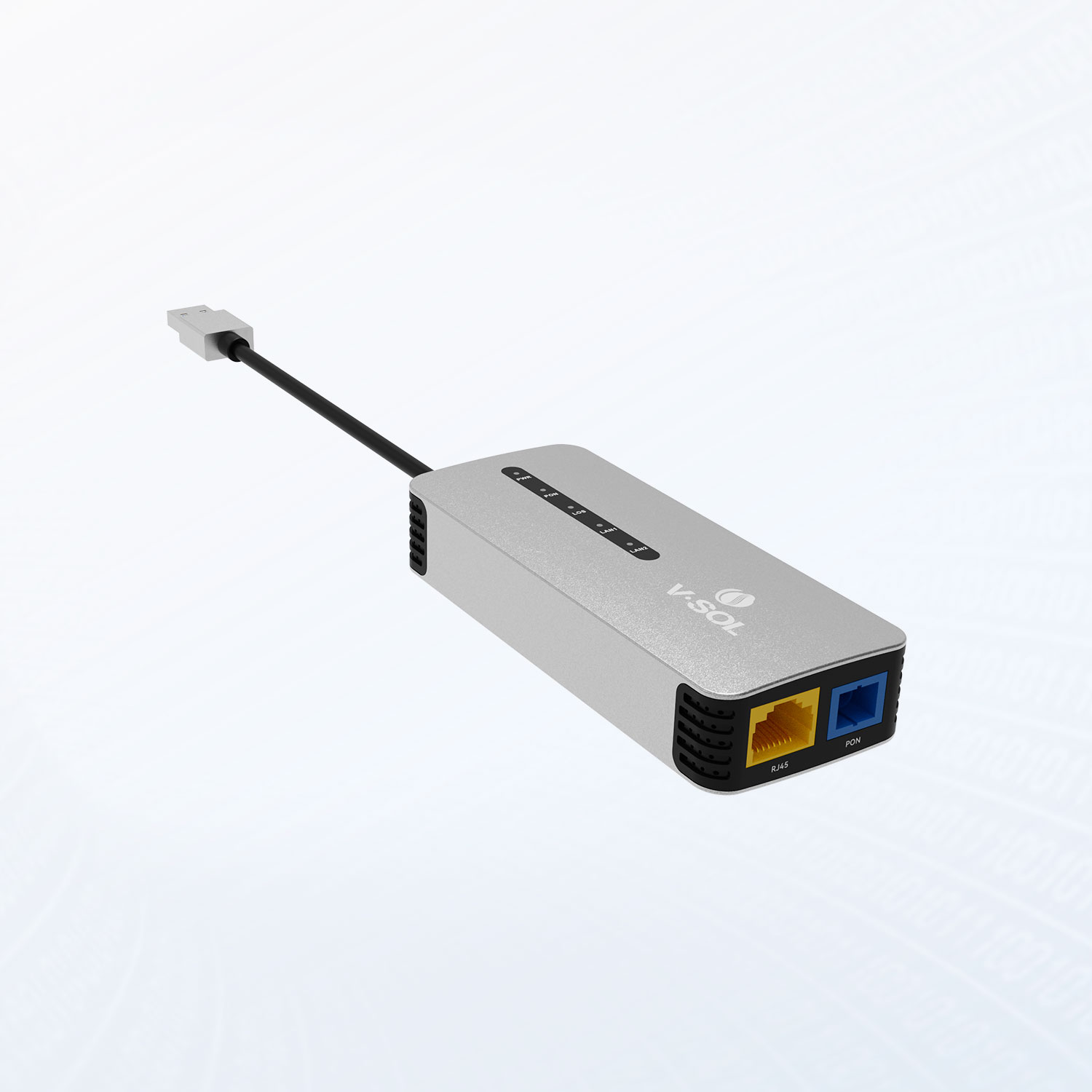

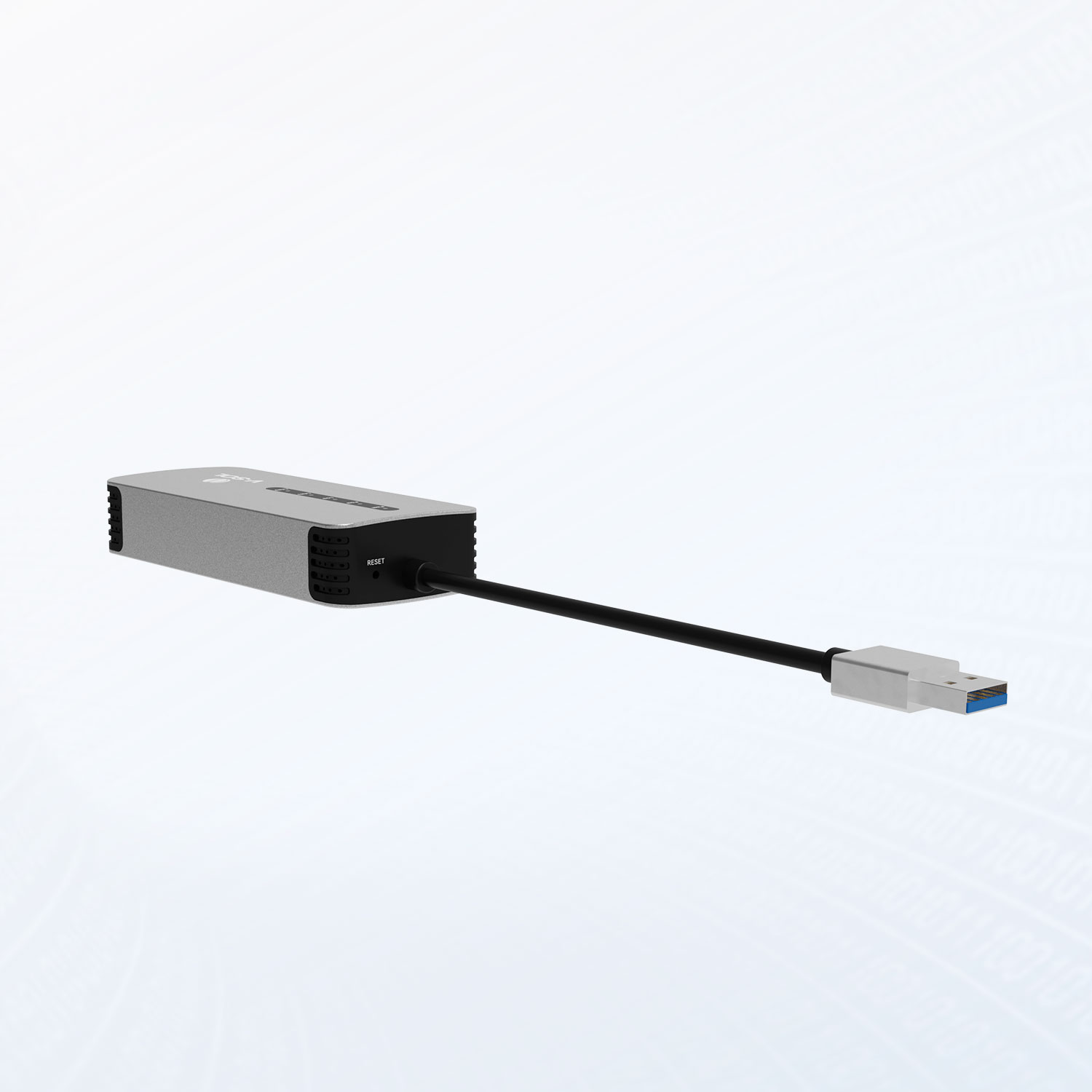

The vSOL V2802U is a high-performance XPON ONU device, a portable fiber optic network terminal designed especially for desktop (FTTD) access needs. This device automatically adapts to your existing fiber infrastructure thanks to its dual-mode XPON architecture supporting both GPON Class B+ and EPON PX20+ standards. Its compact and lightweight aluminum alloy body offers durability and a wide operating temperature range (-10°C to +55°C), while providing reliable performance over long distances up to 20 km. The standout technical feature is the 2.5GbE LAN port, offering speeds well above standard Gigabit Ethernet, making it ideal for high-bandwidth applications. Additionally, the USB 3.0 port (Type-A default, Type-C customizable) can be used for both power supply and data transmission. This allows direct connection to devices without an RJ45 network interface without needing an extra adapter, simplifying installation. The vSOL V2802U is an excellent choice for users requiring high-speed, low-latency internet, such as desktop PCs, gaming consoles, and high-resolution media streaming devices. It is also ideal for cloud desktop clients and similar applications, enabling both home users and businesses to efficiently utilize their fiber optic infrastructure. With Bridge mode support and a private OMCI management protocol compatible with VSOL OLTs, it offers a flexible and manageable solution for service providers. Technical Specifications: - Model: V2802U - PON Interface: 1x XPON (GPON Class B+ & EPON PX20+) - LAN Interface: 1x 2.5GbE (RJ45) - USB Interface: 1x USB 3.0 (Type-A default / Type-C customizable) - Transmission Distance: 20 km - TX Optical Power: 0 ~ +4 dBm - RX Sensitivity: -27 dBm - Overload Tolerance: -3 dBm (EPON) / -8 dBm (GPON) - Operating Temperature: -10°C ~ +55°C - Dimensions: 110 mm x 45 mm x 20 mm - Weight: 0.1 kg - Power Consumption: ≤ 7W - XPON Mode: Dual Mode (GPON & EPON), Auto Detection
