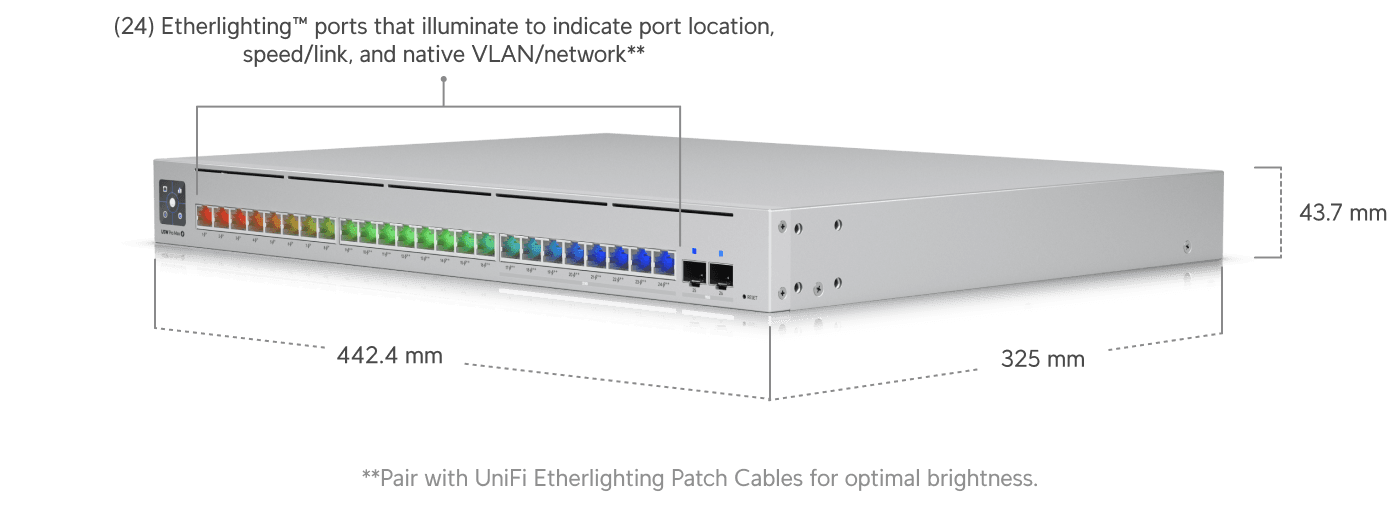

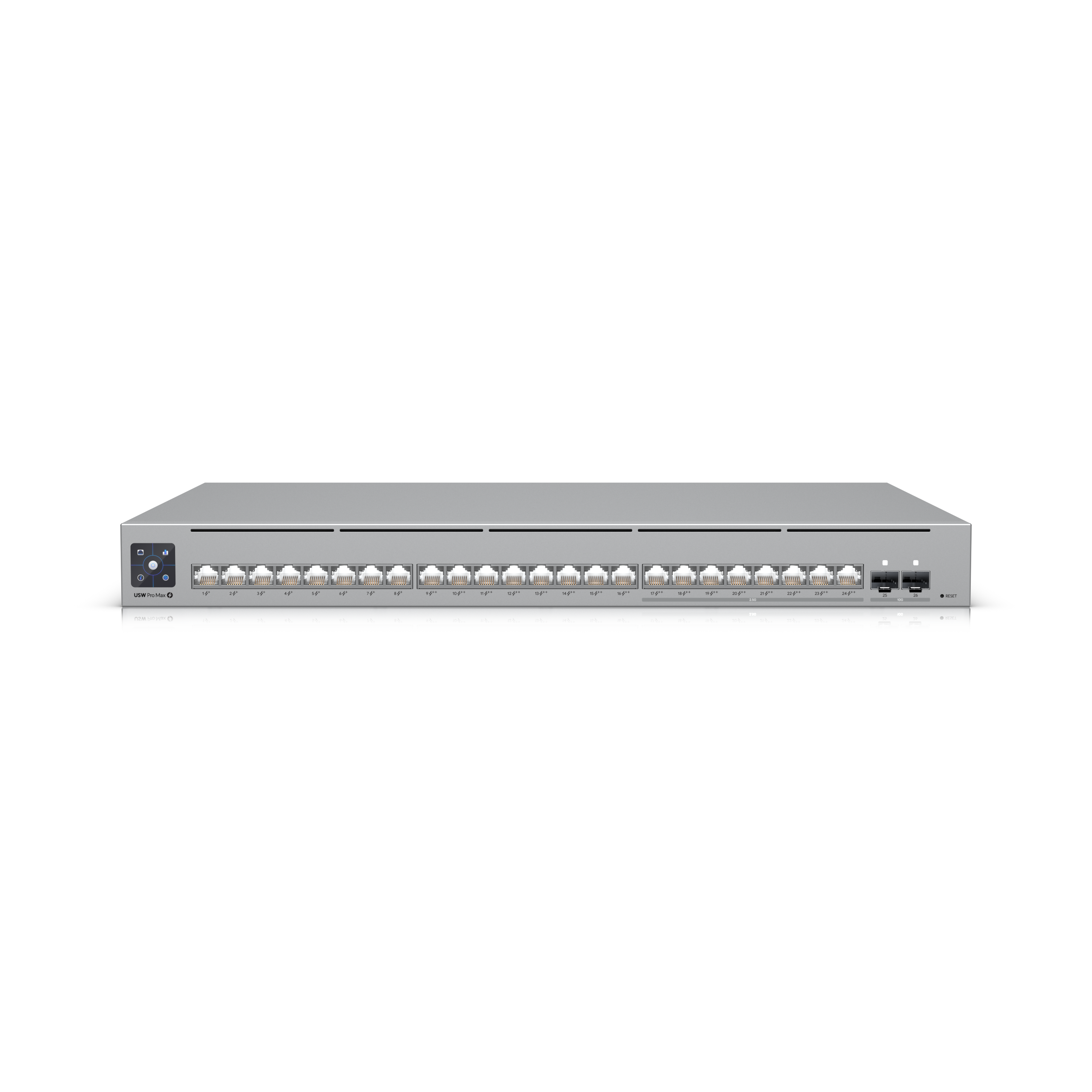

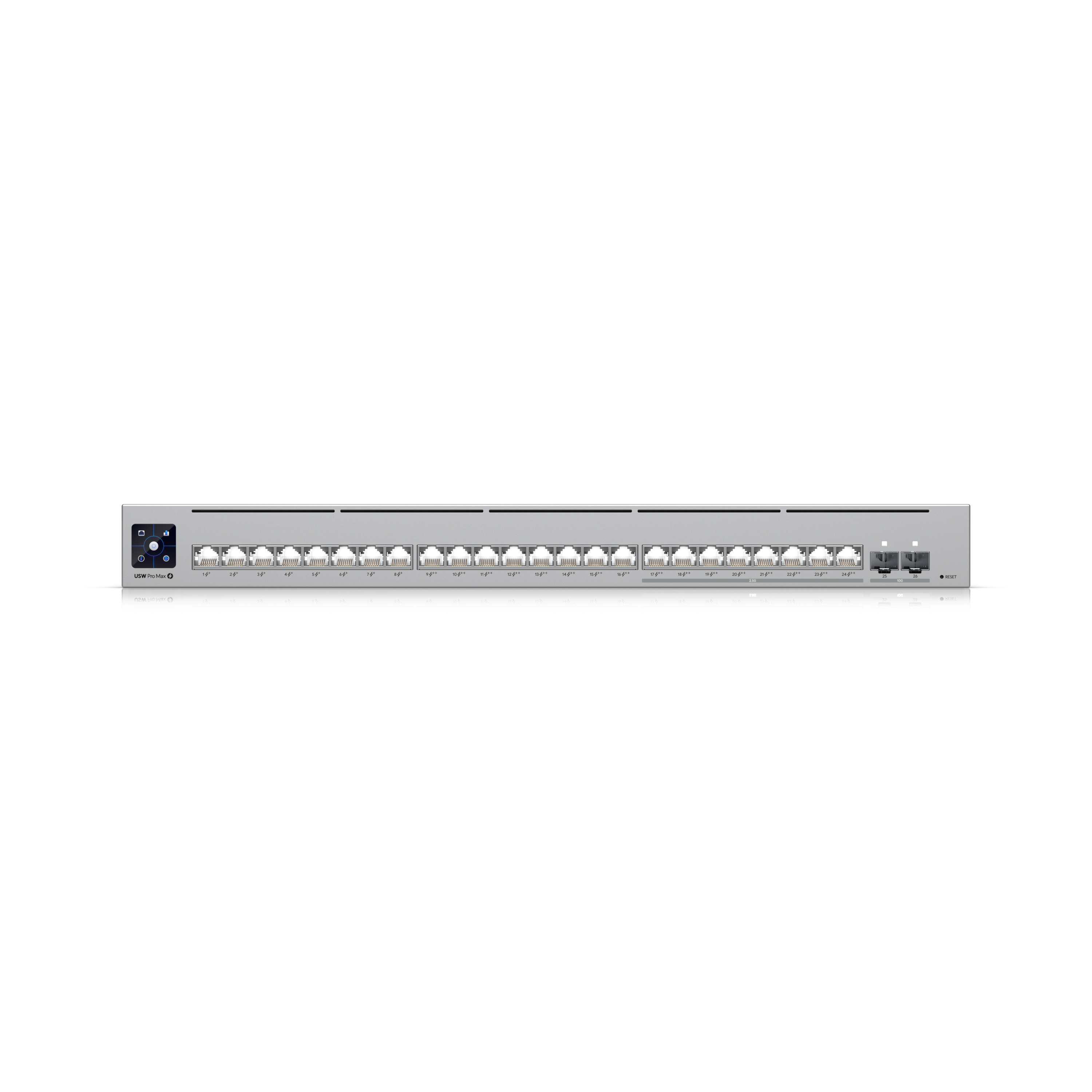

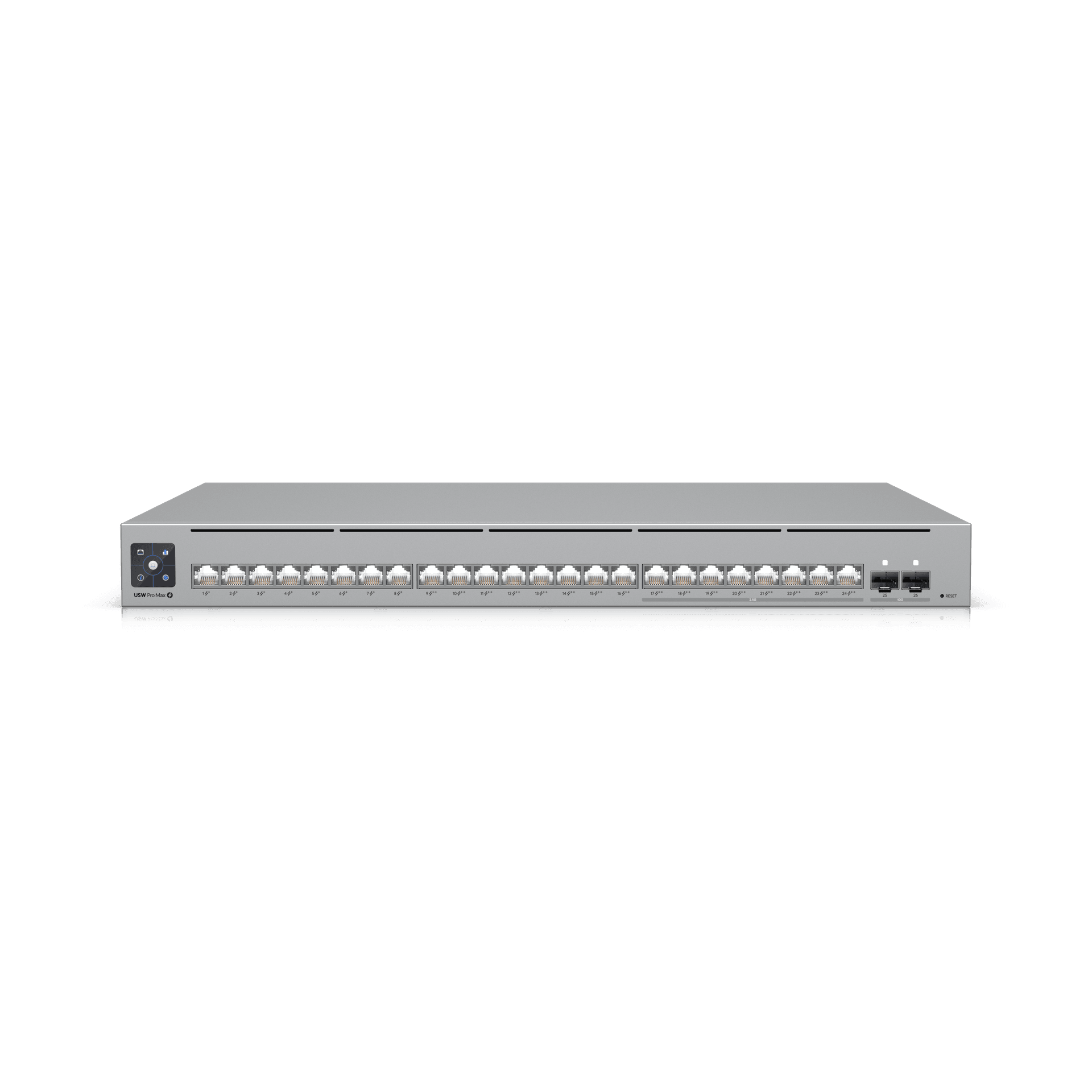

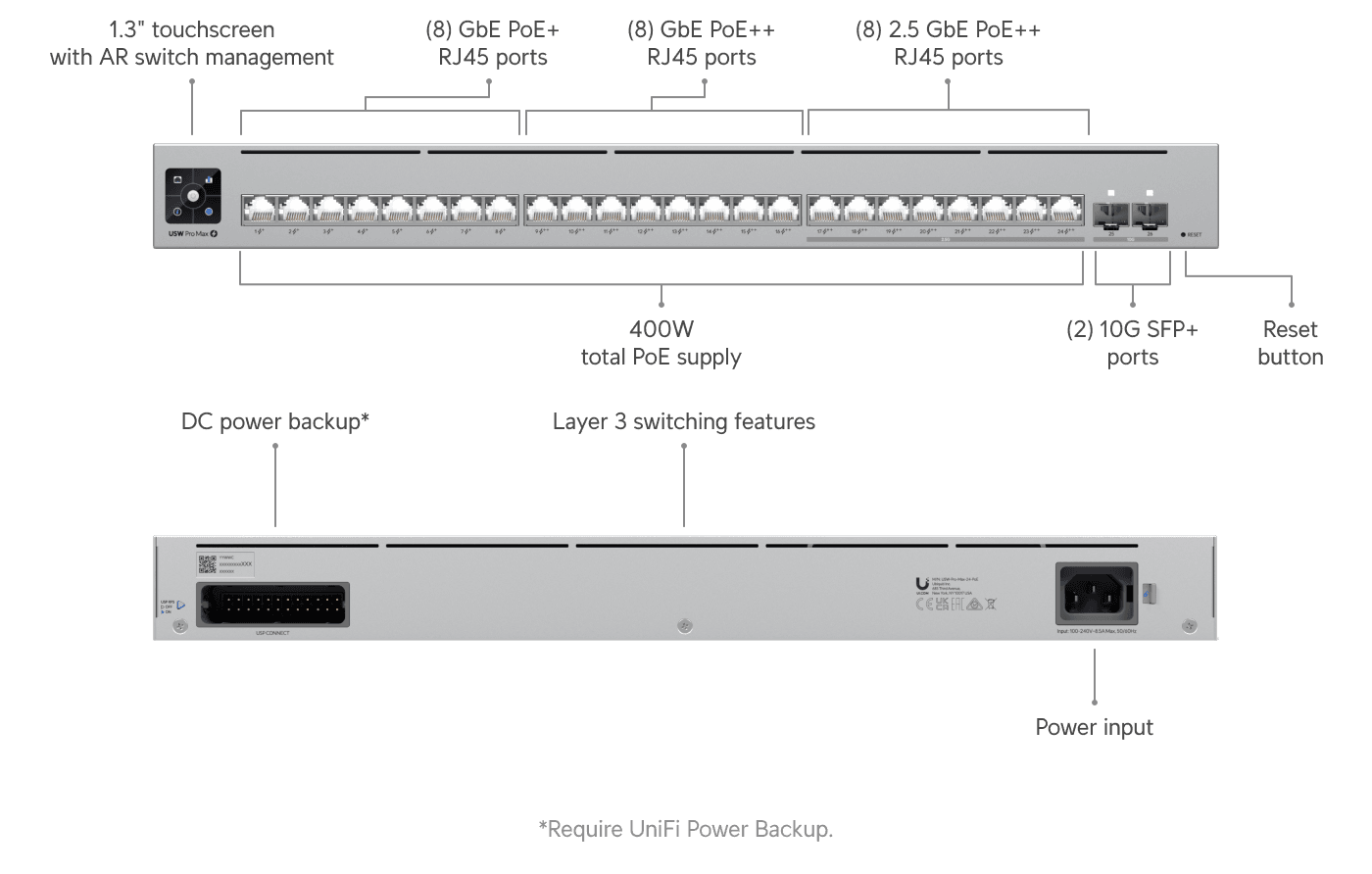

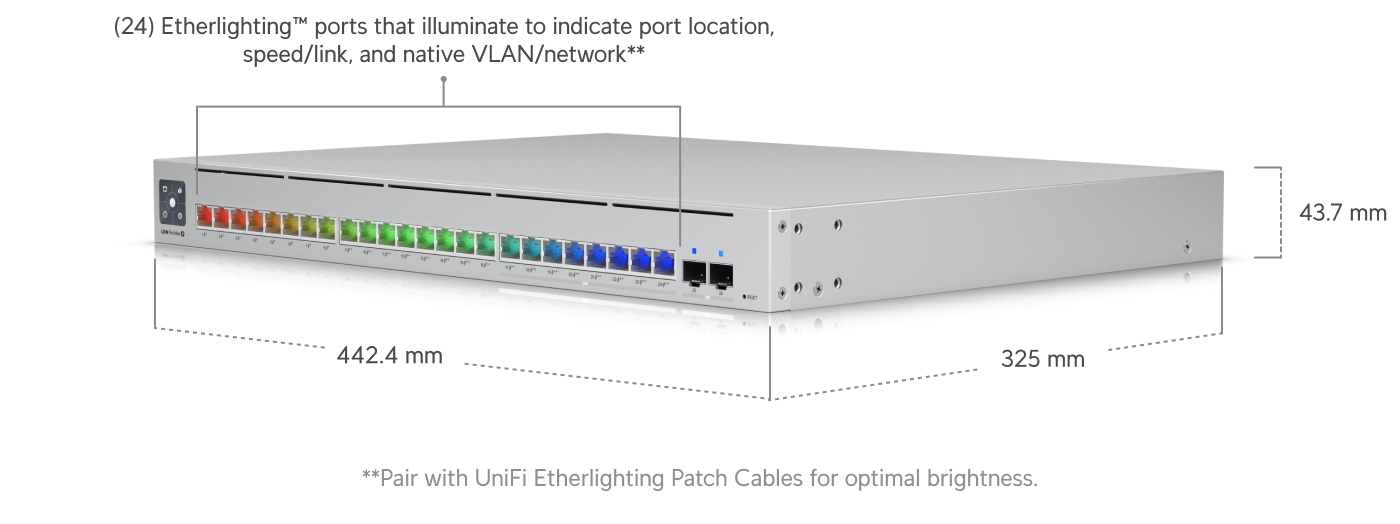

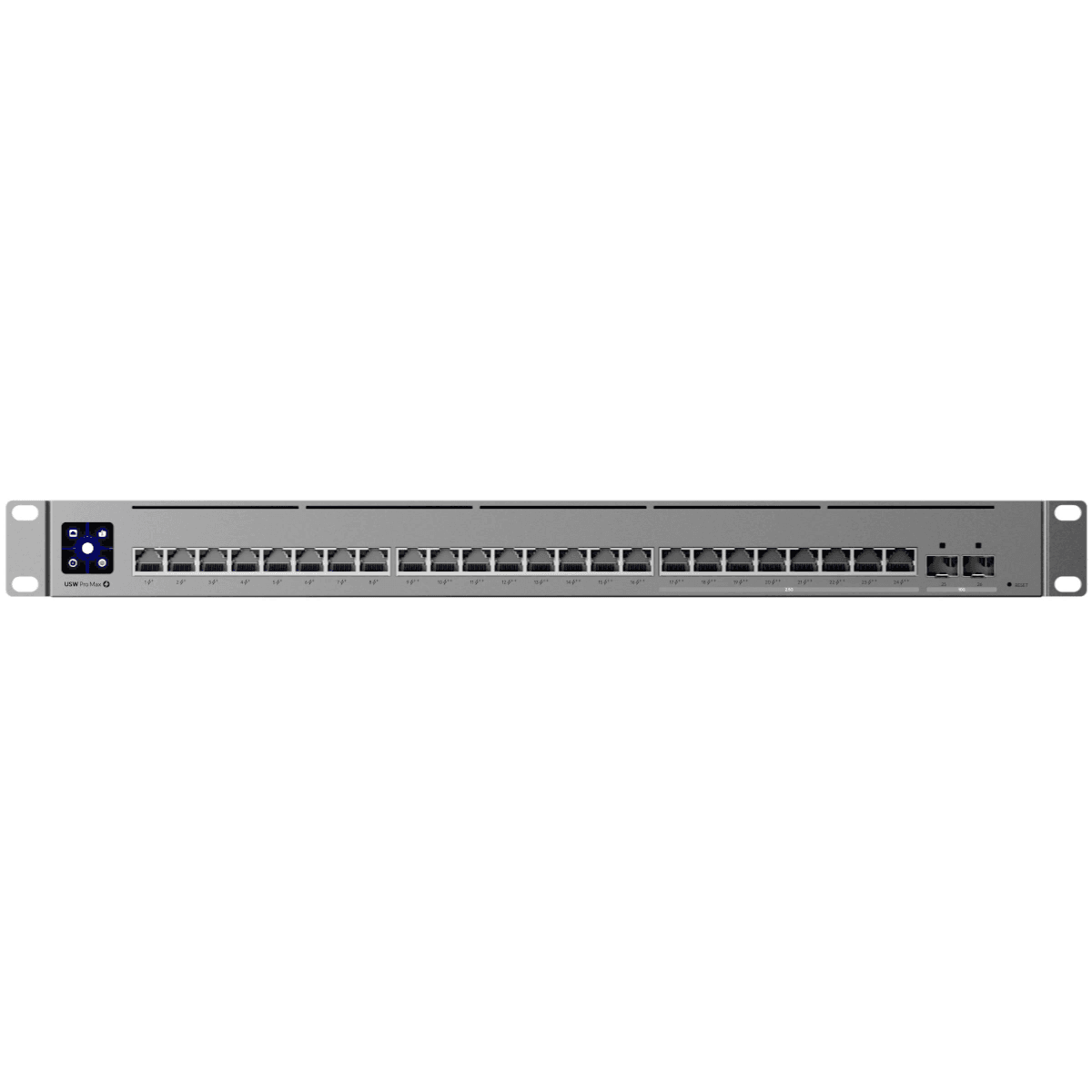

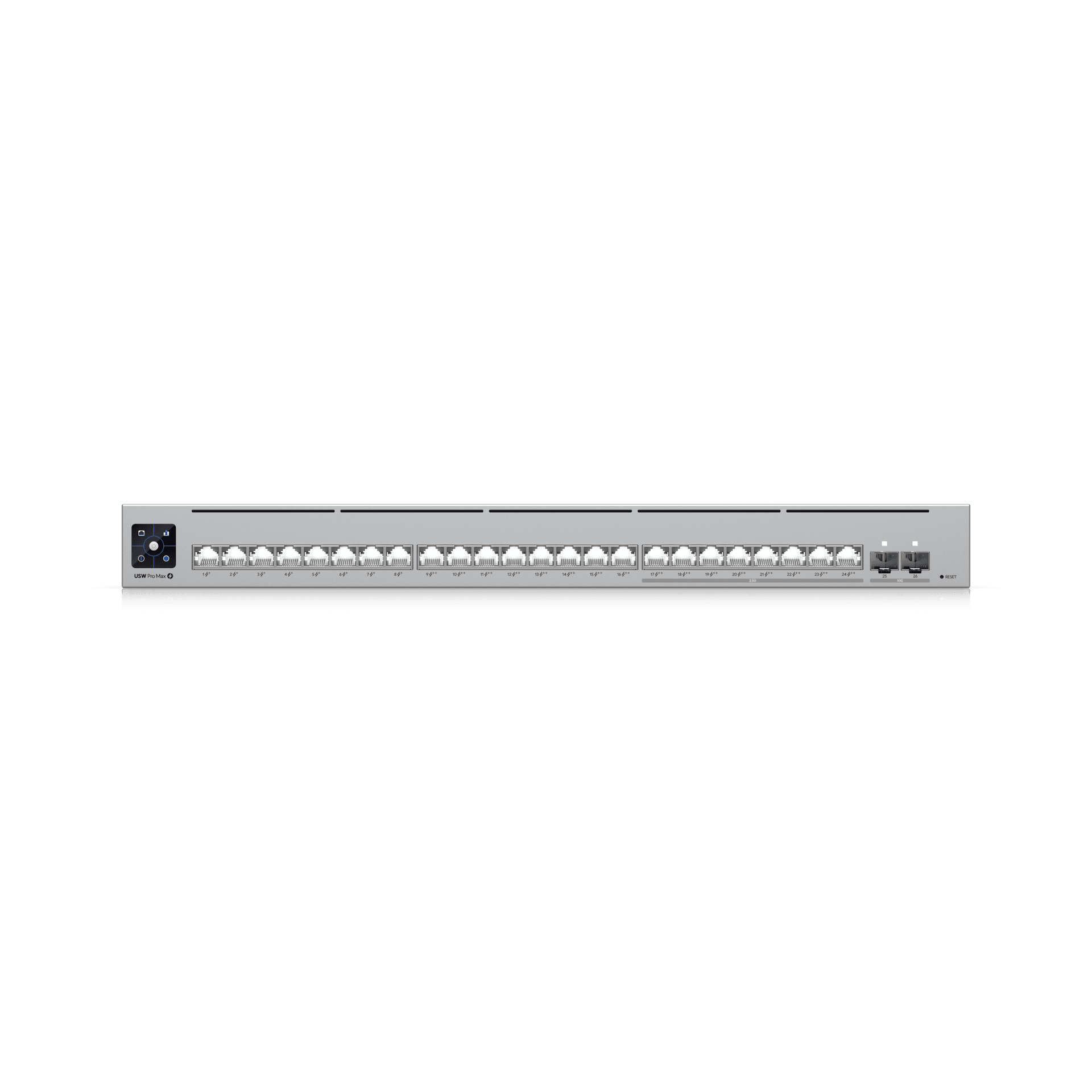

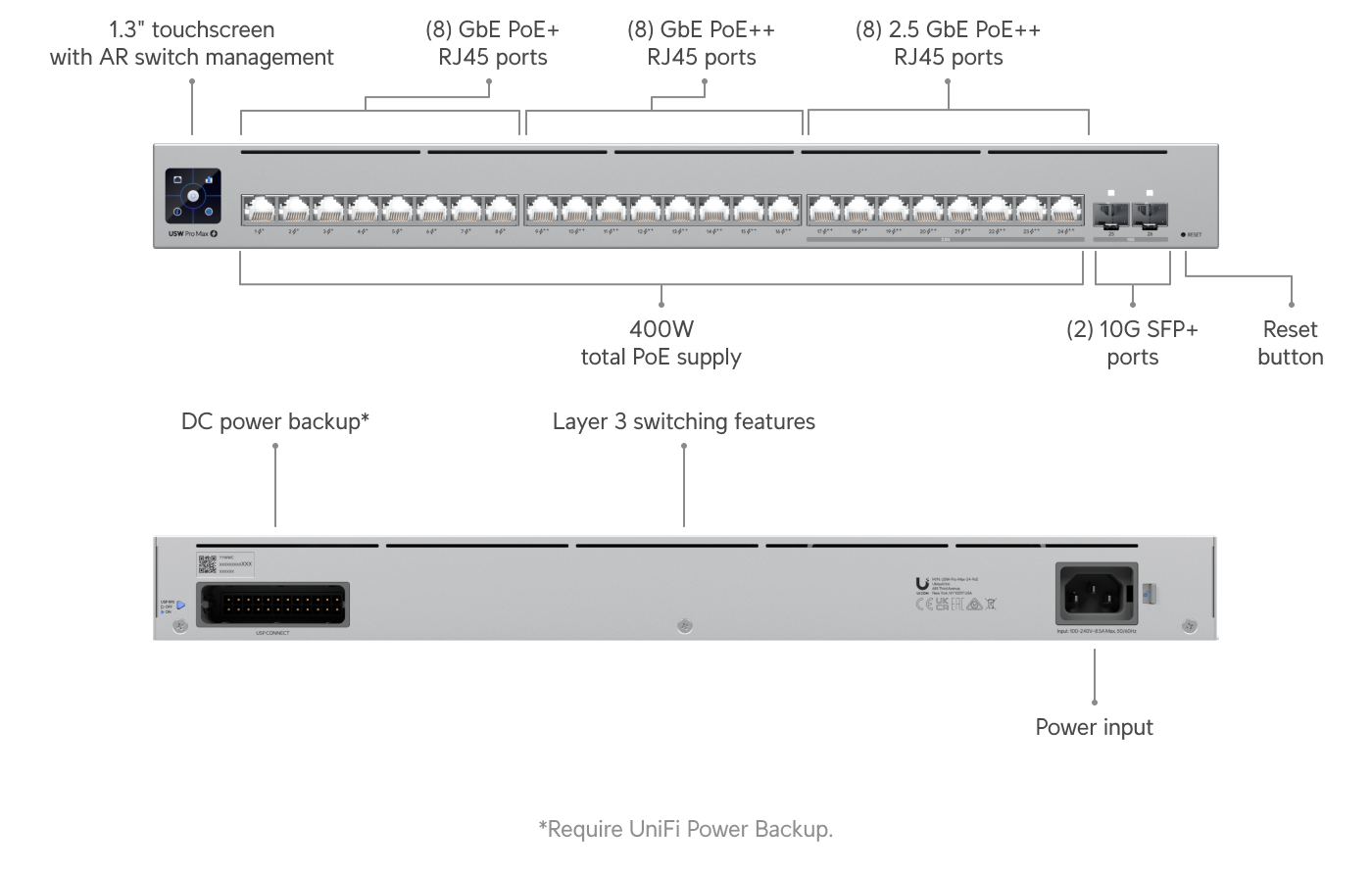

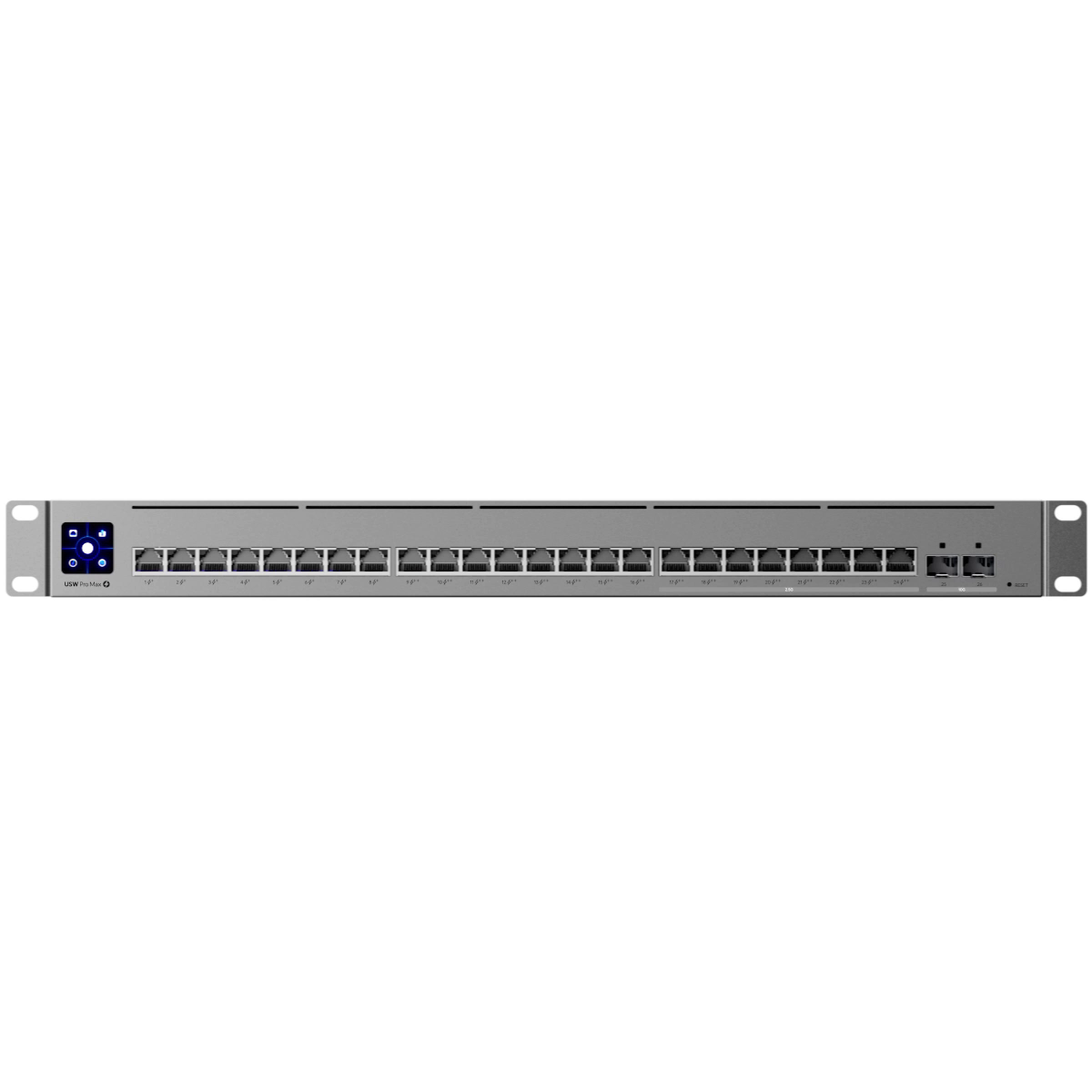

The UniFi Pro Max 24 PoE is a high-performance Layer 3 managed PoE switch designed for medium to large professional networks. With 24 ports, it offers advanced Power over Ethernet (PoE) capabilities, high-speed connectivity options, and centralized UniFi management for enterprise needs. Its 1U rack-mount form factor allows easy integration into data centers and network cabinets. The device is centrally managed via the UniFi Network application, enabling monitoring and control of your entire network infrastructure from a single interface. The switch's technical strengths lie in its flexible and powerful port configuration. With a total PoE budget of 400W, 8 of the 16 1 Gigabit Ethernet ports support PoE+ (30W) and the other 8 support PoE++ (60W). Additionally, all 8 2.5 Gigabit Ethernet ports provide up to 60W PoE++ power for high-power devices. For high-speed uplink needs, there are two 10 Gigabit SFP+ ports. With a switching capacity of 112 Gbps and Layer 3 routing features (Inter-VLAN routing, static routing, DHCP server), it can seamlessly manage complex network topologies and high data traffic. The UniFi Pro Max 24 PoE is ideal for complex setups requiring high bandwidth and power, such as offices with many high-resolution security cameras, access points, VoIP phones, and 2.5GbE-connected workstations. In educational institutions or small business data centers, it can be used with Layer 3 routing to provide secure and fast communication between departments. The Etherlighting feature visually indicates port status and VLAN membership, aiding cable management and rapid troubleshooting. Technical Specifications: - Total Ethernet Ports: 24 - Port Layout: 16x 1GbE RJ45 (8 PoE+, 8 PoE++), 8x 2.5GbE RJ45 (PoE++), 2x 10G SFP+ - Total PoE Budget: 400W - Max PoE Power per Port: 64W (PoE++) - Switching Capacity: 112 Gbps - Layer 3 Features: Yes (Inter-VLAN routing, static routing, DHCP server) - Form Factor: 1U Rack Mount - Power Consumption (excl. PoE): 50W - Operating Temperature: -5°C to 40°C - Dimensions: 442 x 325 x 44 mm - Weight: 5.2 kg (with rack brackets) - Required UniFi Network Version: 8.0.24 and later
