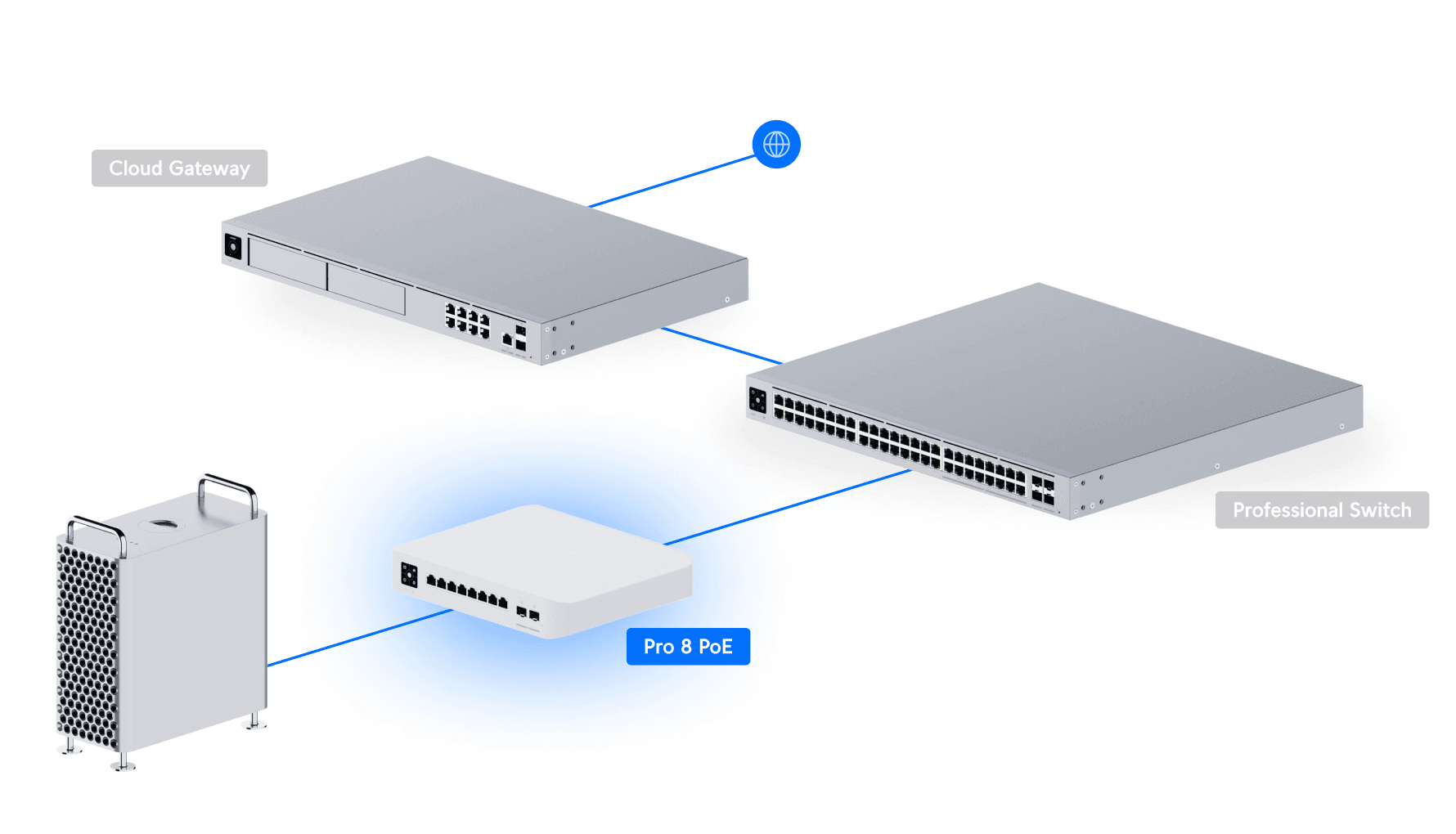

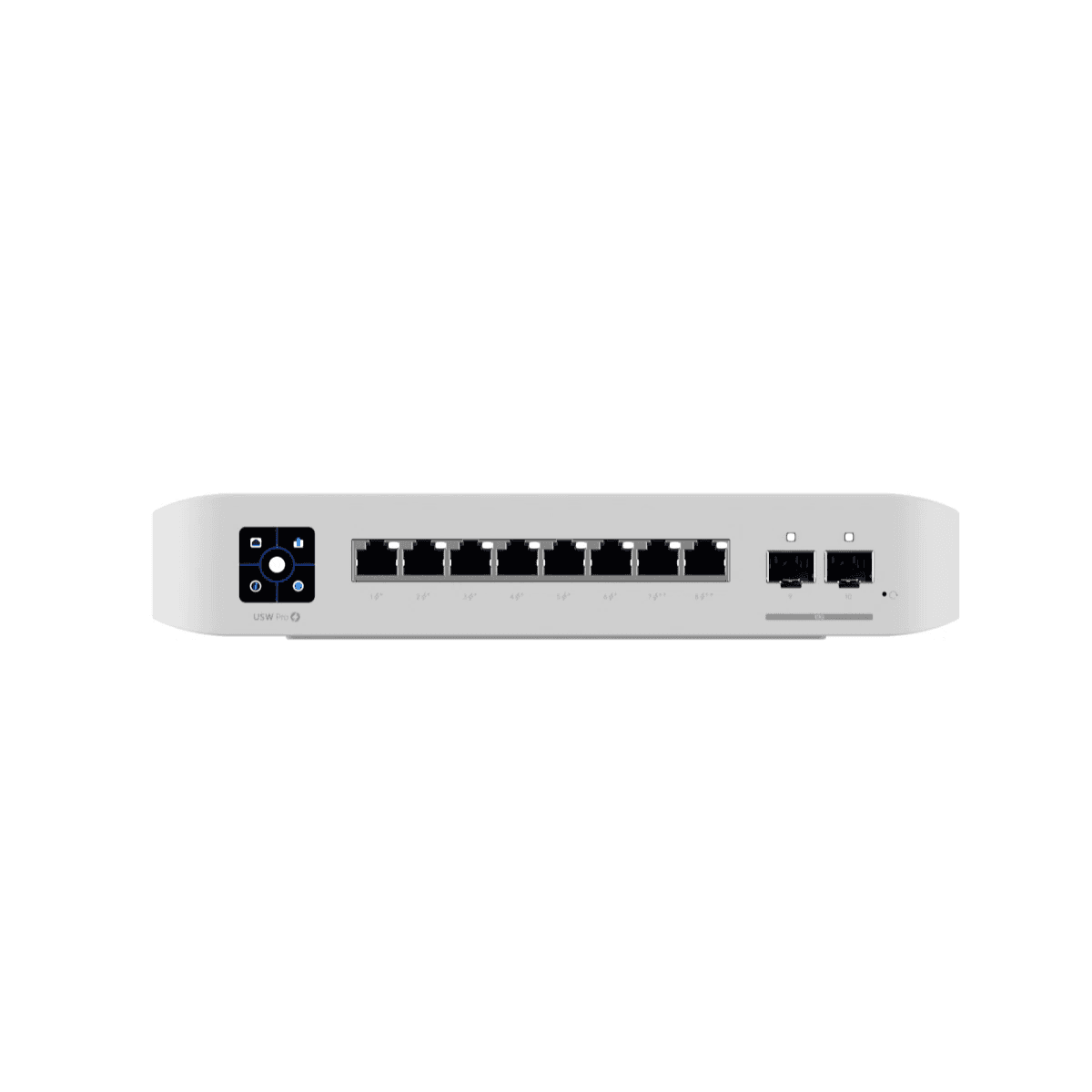

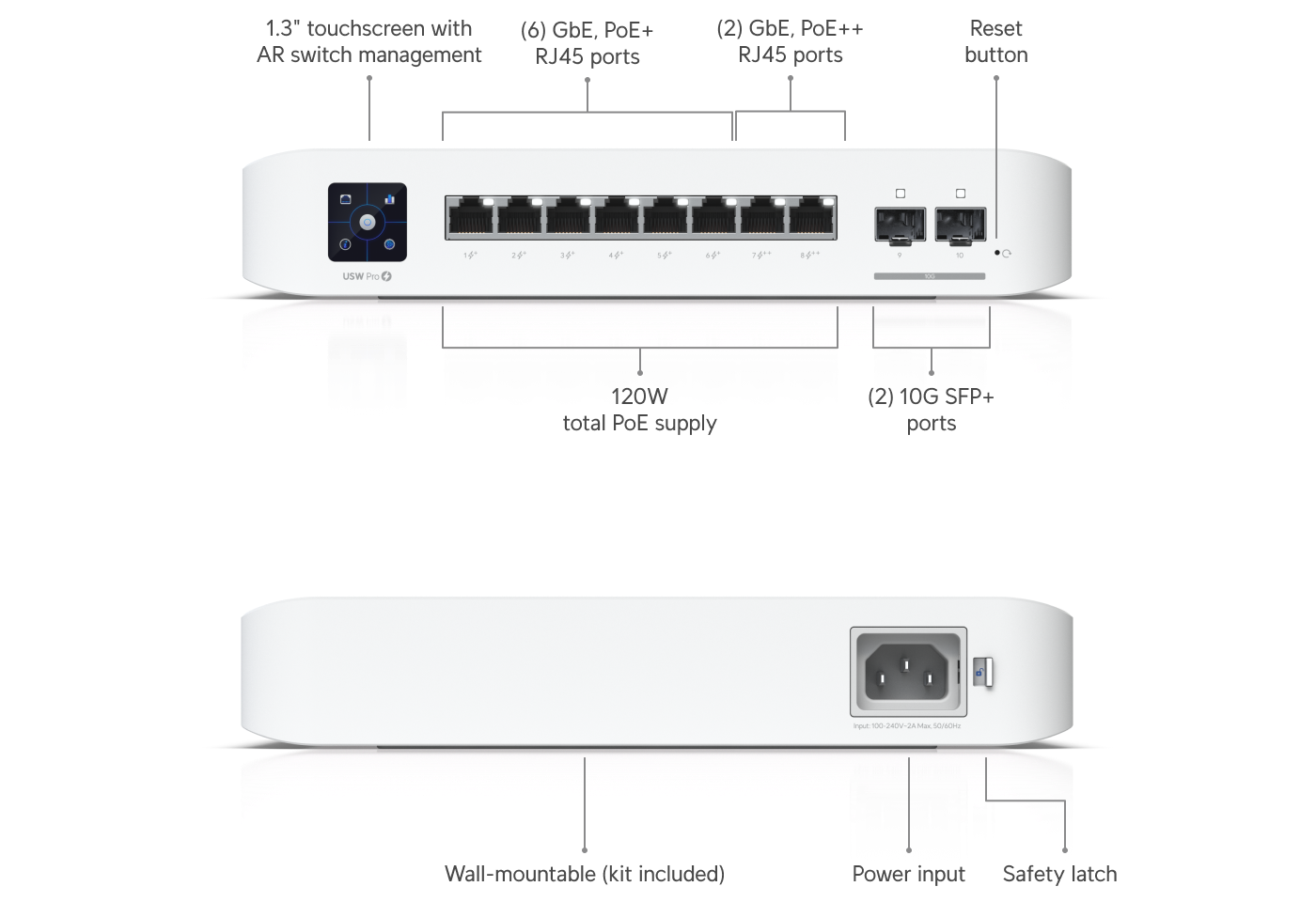

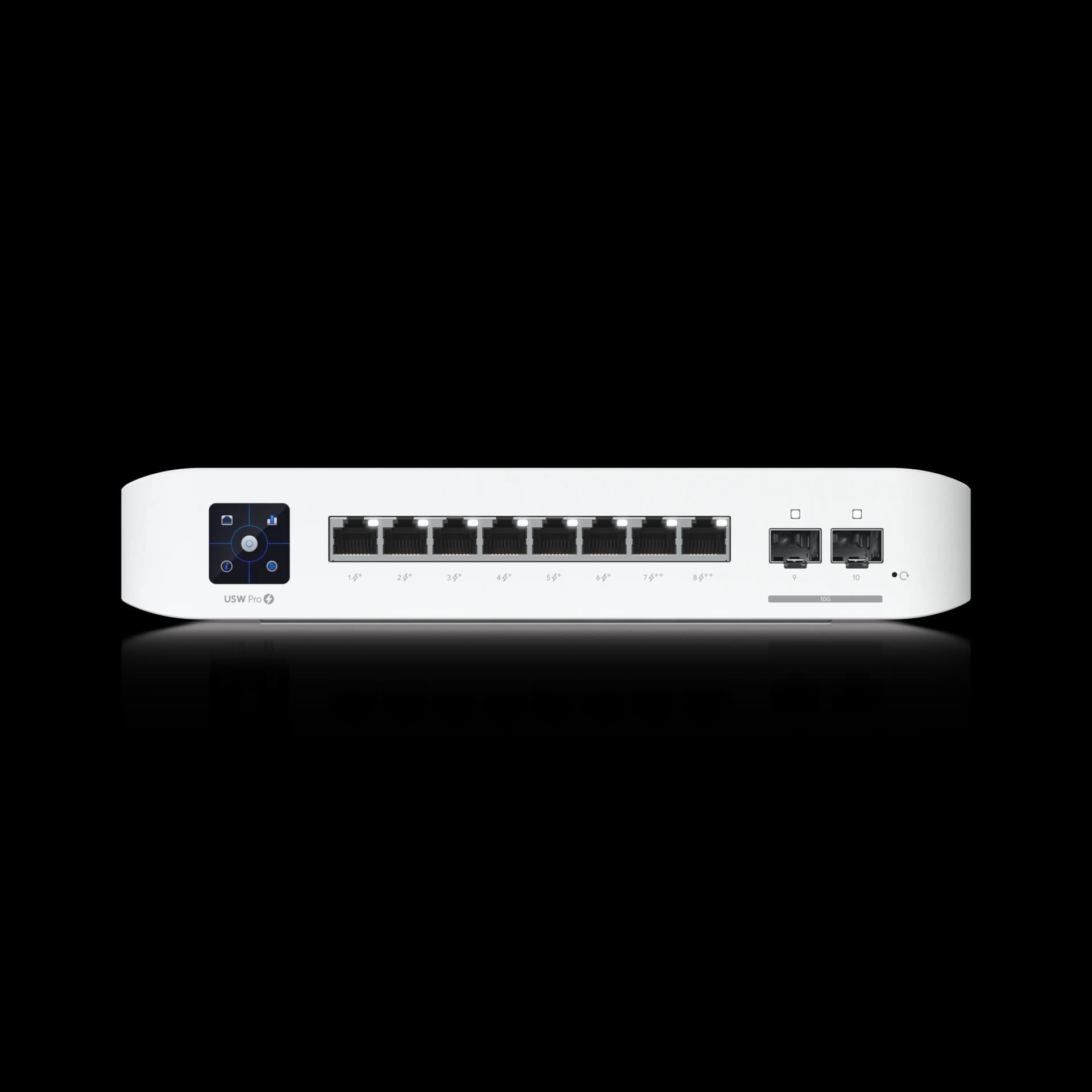

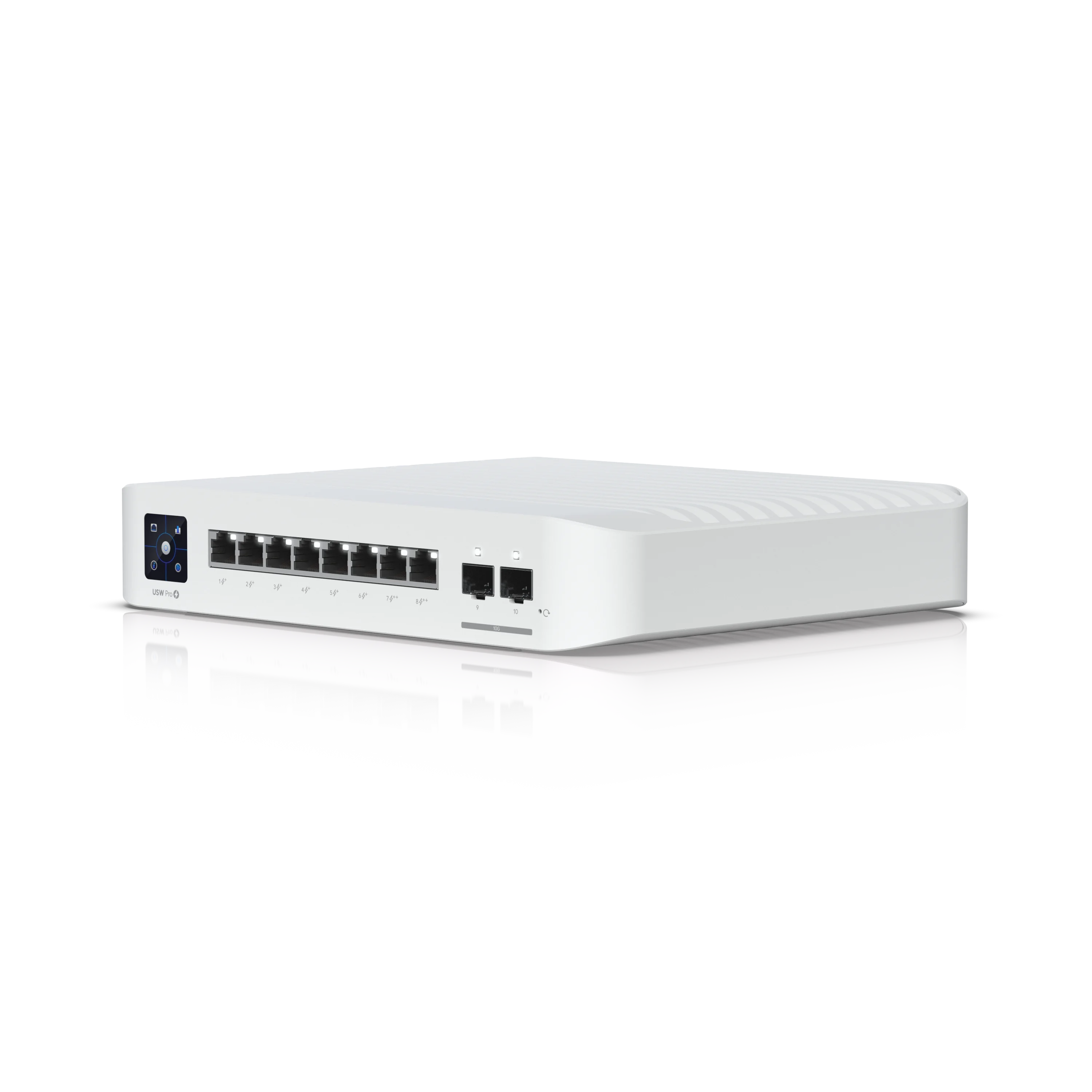

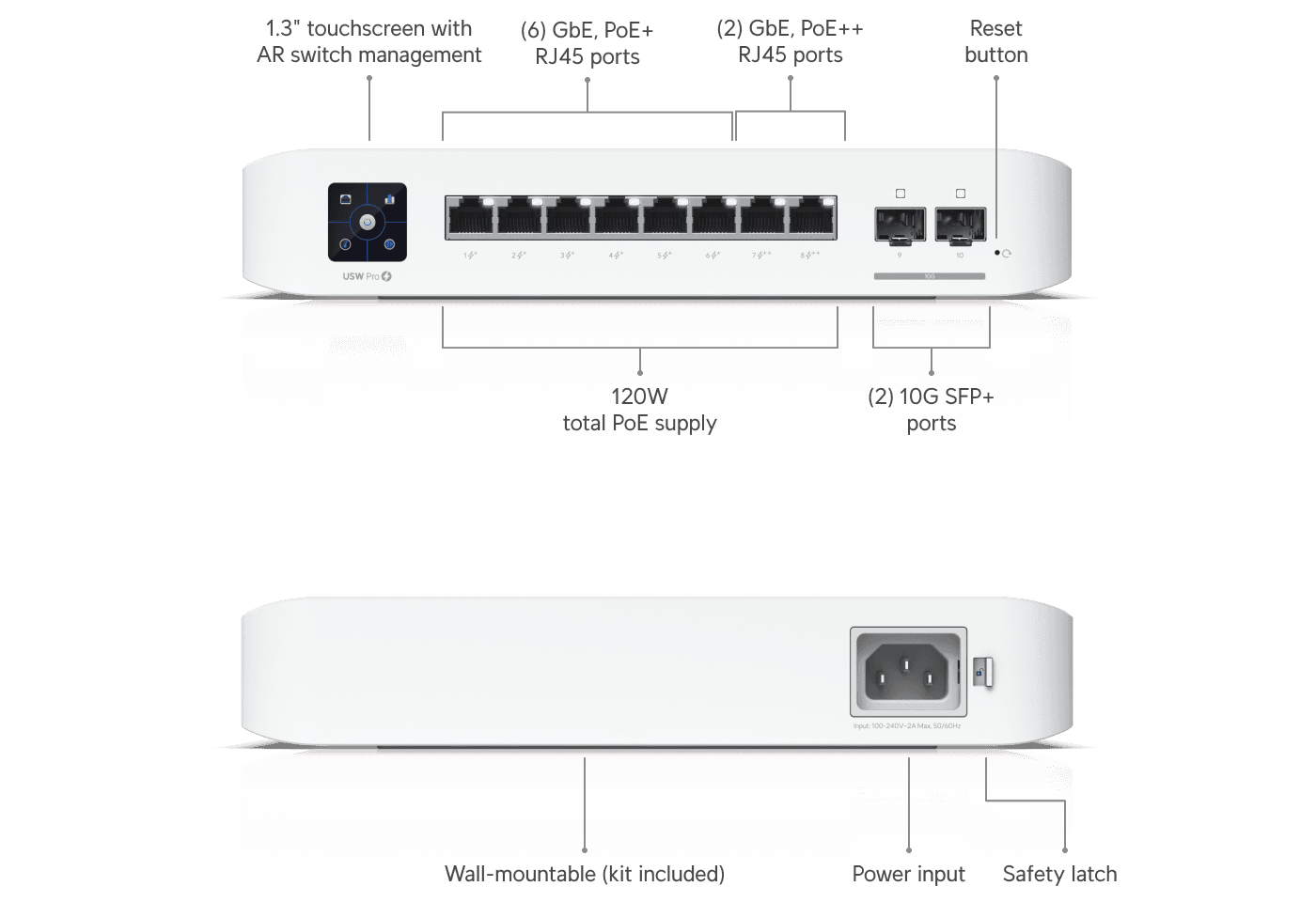

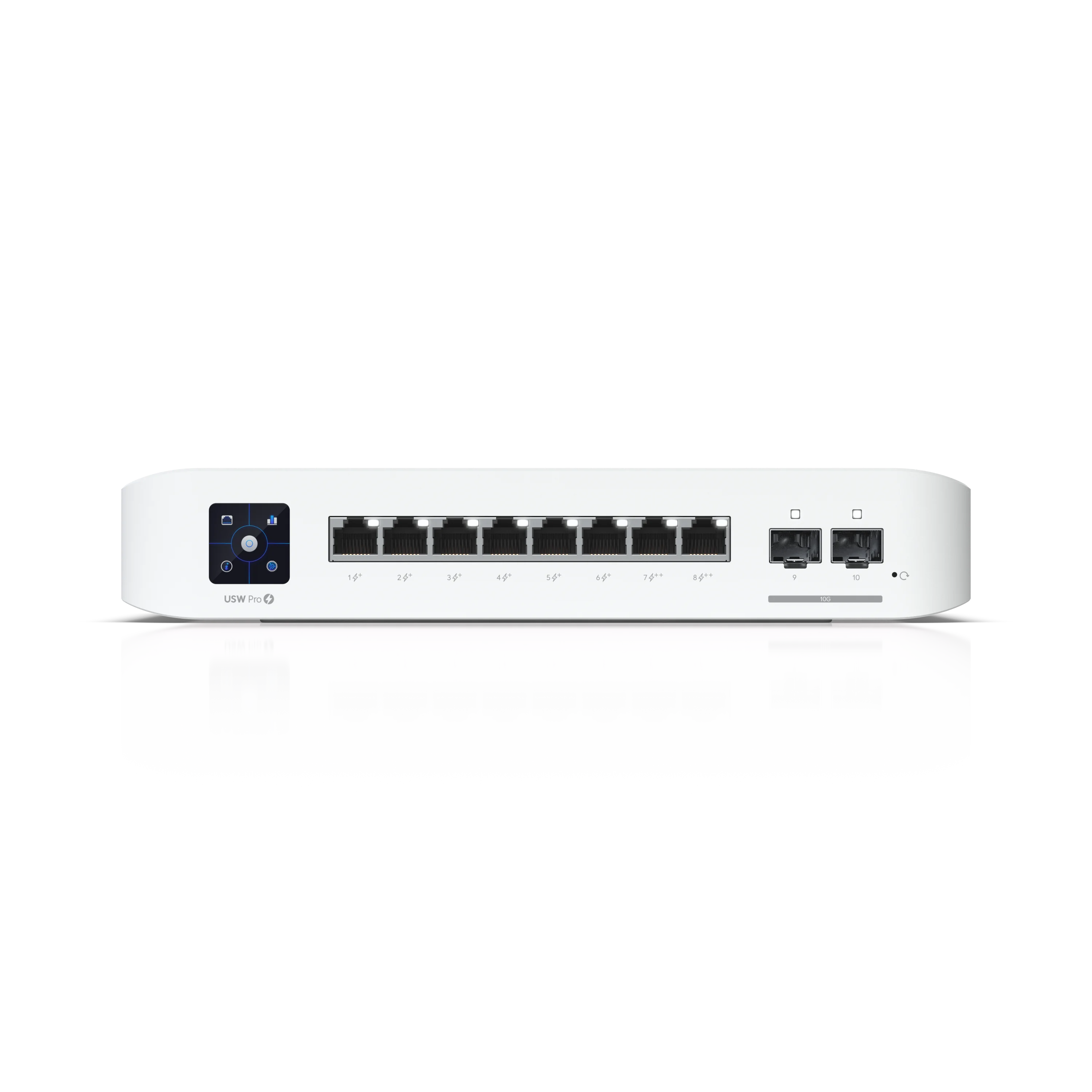

The Ubiquiti USW-Pro-8-PoE is a compact and powerful Layer 3 PoE switch designed for professional network infrastructures. It offers flexible connectivity with eight Gigabit Ethernet ports and two 10 Gigabit SFP+ ports. As part of the UniFi ecosystem, this device can be easily configured and monitored even in large-scale deployments through centralized management software. Its robust polycarbonate and metal housing, suitable for desktop or wall mounting, makes it an ideal choice for offices, small businesses, or enterprise distribution points. The switch's technical strengths lie in its high power delivery and advanced networking features. With a total PoE budget of 120W, it provides PoE+ (up to 30W) on six ports and PoE++ (up to 60W) on two ports, allowing high-power devices such as access points, phones, or security cameras to be powered and receive data over a single cable. A switching capacity of 56 Gbps and a non-blocking throughput of 28 Gbps ensure performance for bandwidth-intensive applications. Layer 3 features including Inter-VLAN routing, static routing, and DHCP server enable efficient and secure network segmentation. The USW-Pro-8-PoE is particularly suitable for scenarios with many PoE devices and high-speed connectivity needs. For example, it is an excellent solution for powering and managing multiple high-resolution security cameras, VoIP phones, and Wi-Fi 6 access points centrally in a small office. Additionally, the 10G SFP+ ports allow a high-speed uplink to a server or backbone network, minimizing latency for data-intensive applications. The built-in 1.3-inch touchscreen provides a convenient management interface for quick access to device status, port information, and basic statistics. Technical Specifications: - Port Count and Type: 8x GbE RJ45 (6 PoE+, 2 PoE++) + 2x 10G SFP+ - Total PoE Power Output: 120W - Switching Capacity: 56 Gbps - Total Non-Blocking Throughput: 28 Gbps - Dimensions: 200 x 248 x 44 mm - Weight: 2.1 kg - Power Supply: 100-240V AC, Internal 150W - Maximum Power Consumption (Excluding PoE): 30W - Operating Temperature: -5°C to 45°C - Layer 3 Features: Yes (Inter-VLAN Routing, Static Routing, DHCP Server) - Display: 1.3" Touchscreen - Management: UniFi Network 7.5.176 and later
| Port Sayısı | 8 |
|---|---|
| Toplam Poe Guc Cikisi | 120W |
| Anahtarlama Kapasitesi | 56 Gbps |
| Toplam Engellenmeyen Veri Aktarimi | 28 Gbps |

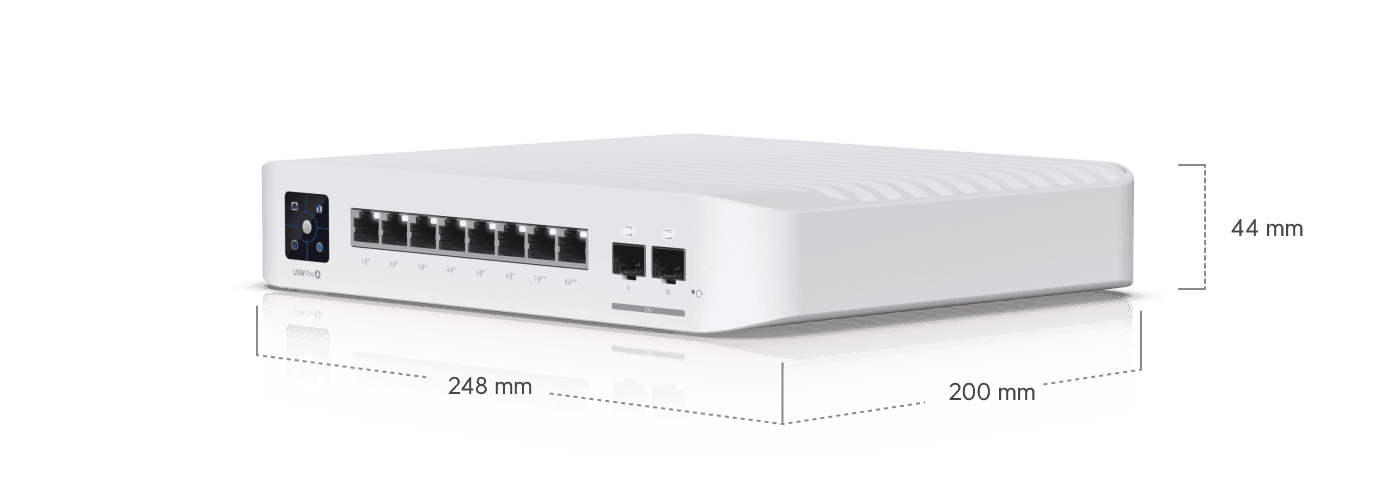

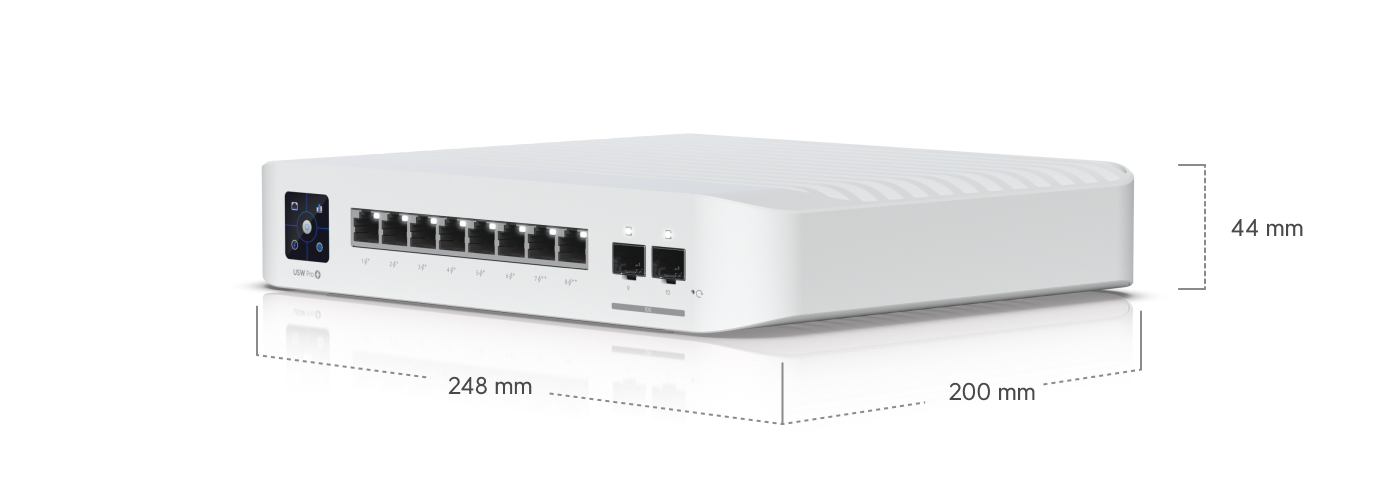

| Boyutlar | 200 x 248 x 44 mm |
| Agirlik | 2.1 kg |
| Guc Kaynagi | 100-240V AC, Dahili 150W |
| Maksimum Guc Tuketimi Poe Haric | 30W |
| Calisma Sicakligi | -5°C ila 45°C |
| Katman 3 Ozellikleri | Var (Inter-VLAN Routing, Static Routing, DHCP Server) |
| Ekran | 1.3" Dokunmatik Ekran |
| Yönetilebilirlik | UniFi Network 7.5.176 ve üzeri |
| Brand | Ubiquiti |
| Model / MPN | ST01578 |
| SKU | ST01578 |
| Barcode (GTIN) | 810084692691 |
| Category | PoE Switchler |
| Condition | Brand new |
| Warranty | Manufacturer warranty, official invoice |
