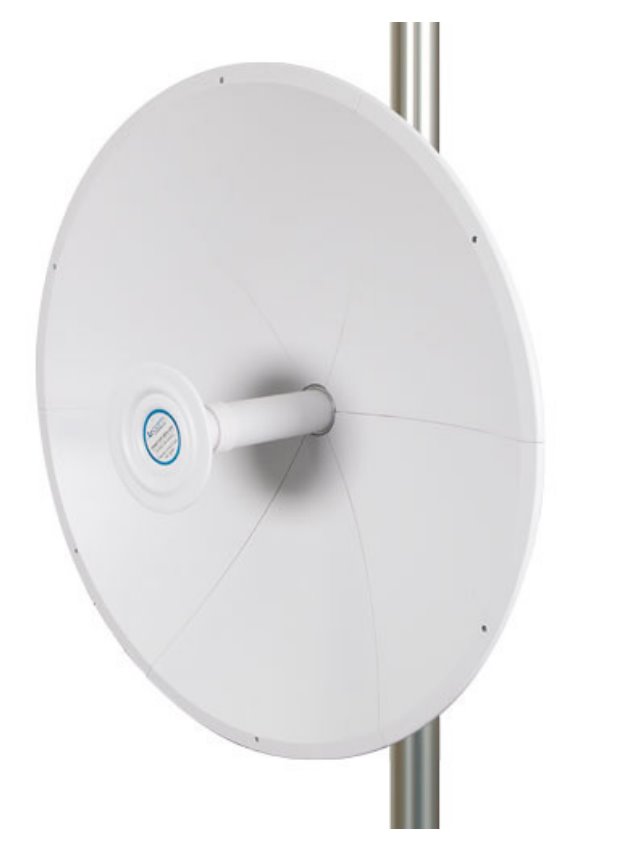

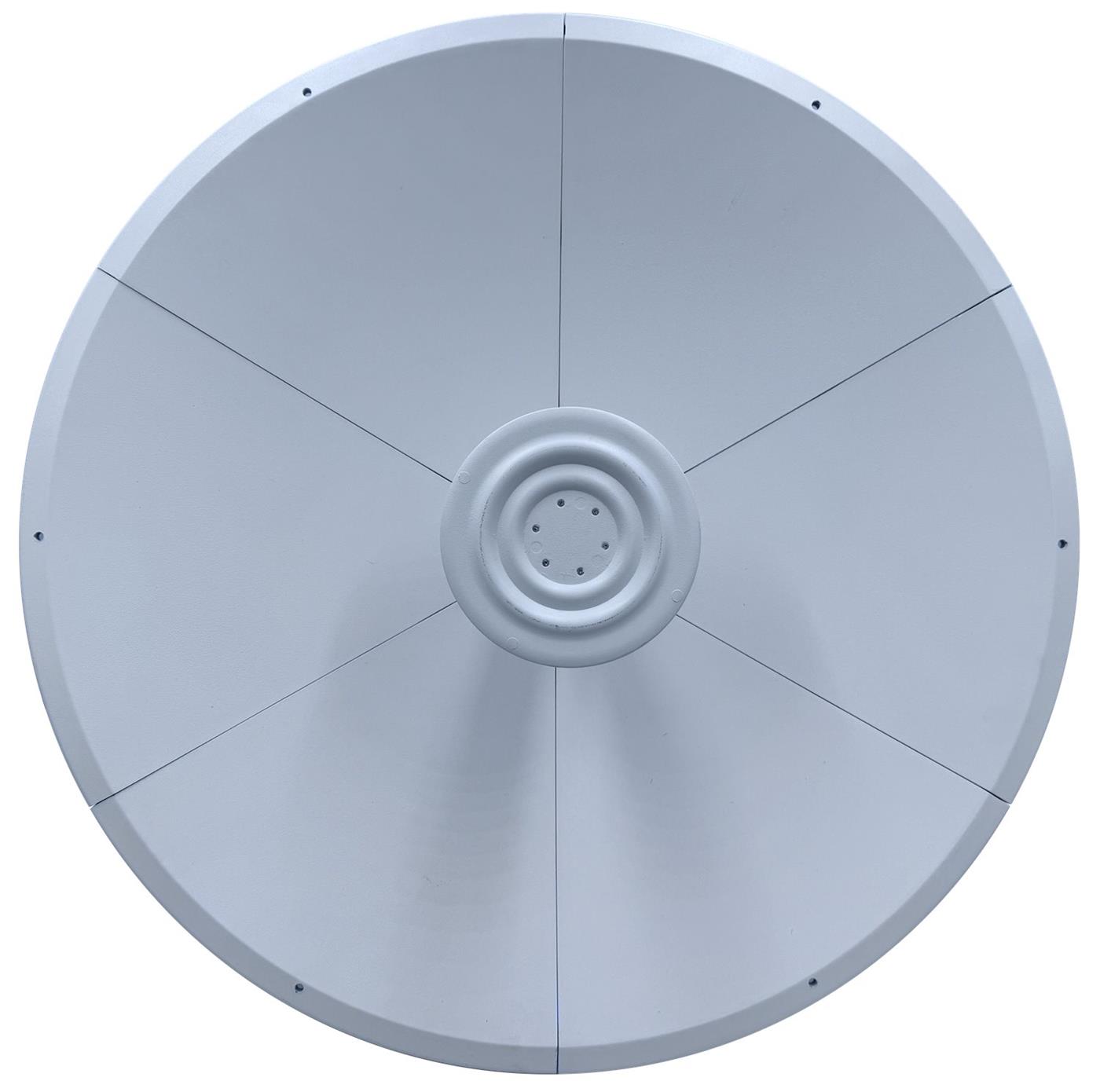

The Mimosa N5-X30 is a high-performance parabolic dish antenna system operating across a wide frequency spectrum from 4.9 GHz to 6.4 GHz. Designed specifically for point-to-point (PTP) and point-to-multipoint (PTMP) long-distance connections, this antenna offers easy and quick installation with twist-on adapters compatible with Mimosa C5x, C6x, and B5x series radio units. The collapsible dish design provides convenience for transport and storage, while the robust aluminum construction and DC grounding ensure durability against harsh outdoor conditions and lightning protection. The technical strengths of this antenna are particularly evident in long-distance and high-capacity links. With a high gain ranging from 29 to 31 dBi and a narrow 5-degree horizontal and vertical beamwidth, it focuses the signal over long distances, maximizing efficiency. The 30 dB port-to-port isolation and 35 dB front-to-back ratio provide strong interference rejection, enhancing connection stability and clarity. Support for dual linear polarization (vertical/horizontal or +/-45°) combined with MIMO capability significantly improves spectral efficiency and total data throughput. Thanks to its wide frequency range, the Mimosa N5-X30 antenna can be used in various applications, including 4.9 GHz public safety bands, 5 GHz ISM/UNII bands, and licensed frequencies up to 6 GHz. These features make it an ideal solution for inter-city backhaul connections for telecom operators, reliable data links in industrial facilities, or high-speed internet access networks in rural areas. The sturdy bracket and fine-adjustable azimuth/elevation mechanism allow precise alignment to maximize post-installation performance. Technical Specifications: - Antenna Type: 2-Foot Parabolic Dish (MIMO) - Operating Frequency: 4.9 - 6.4 GHz - Gain: 29-31 dBi (band dependent) - Azimuth (Horizontal) HPBW: 5 Degrees - Elevation (Vertical) HPBW: 5 Degrees - Polarization: Dual Linear (V/H or +/-45°) - Port-to-Port Isolation: 30 dB - Front-to-Back Ratio: 35 dB - Maximum Input Power: 50 Watts - Impedance: 50 Ohms - Operating Temperature: -40°C to +70°C - Weight (Single Antenna): 6.5 kg - Compatible Radios: Mimosa C5x, C6x, B5x Series - Connection: Twist-On Adapter - Material: Aluminum - Lightning Protection: DC Grounded
