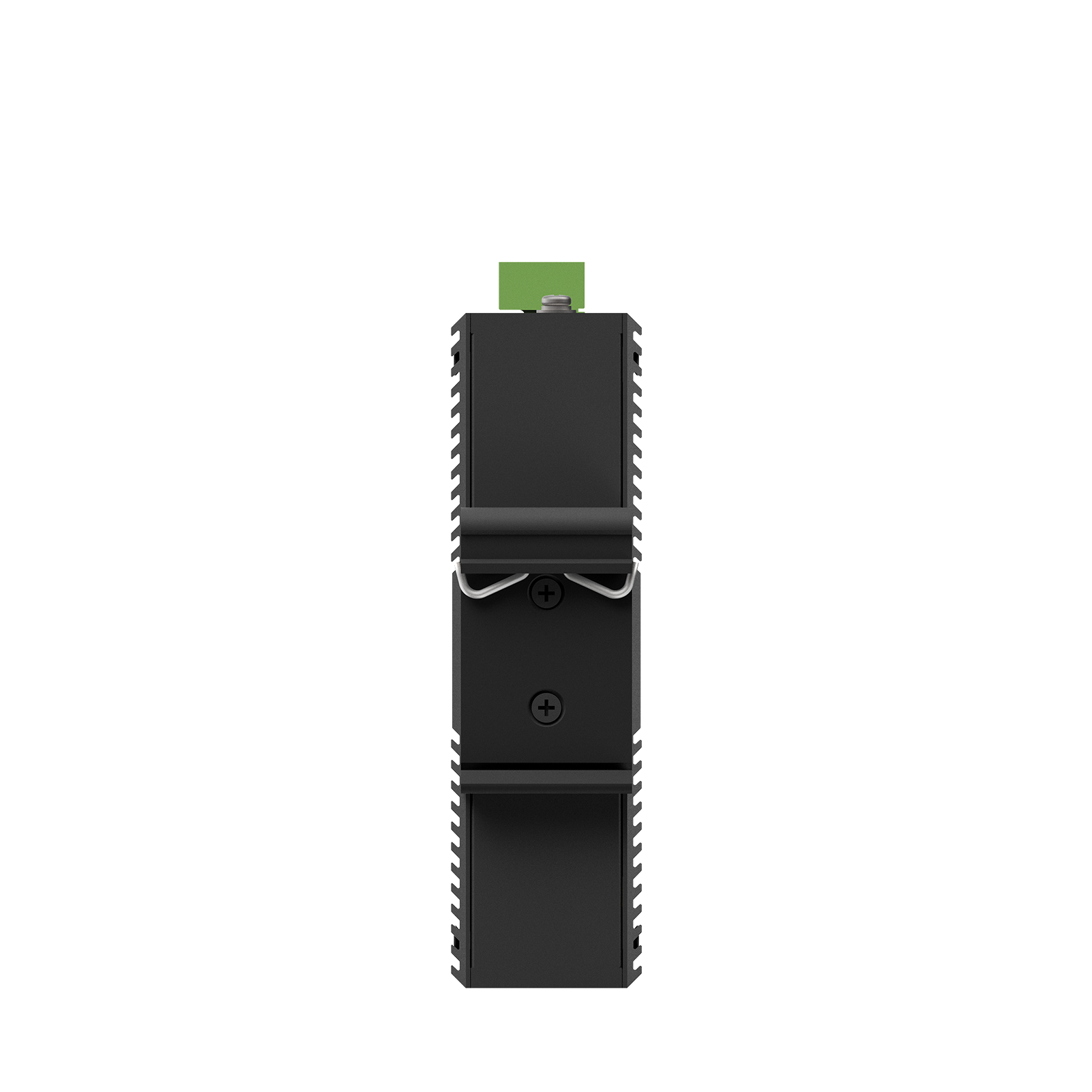

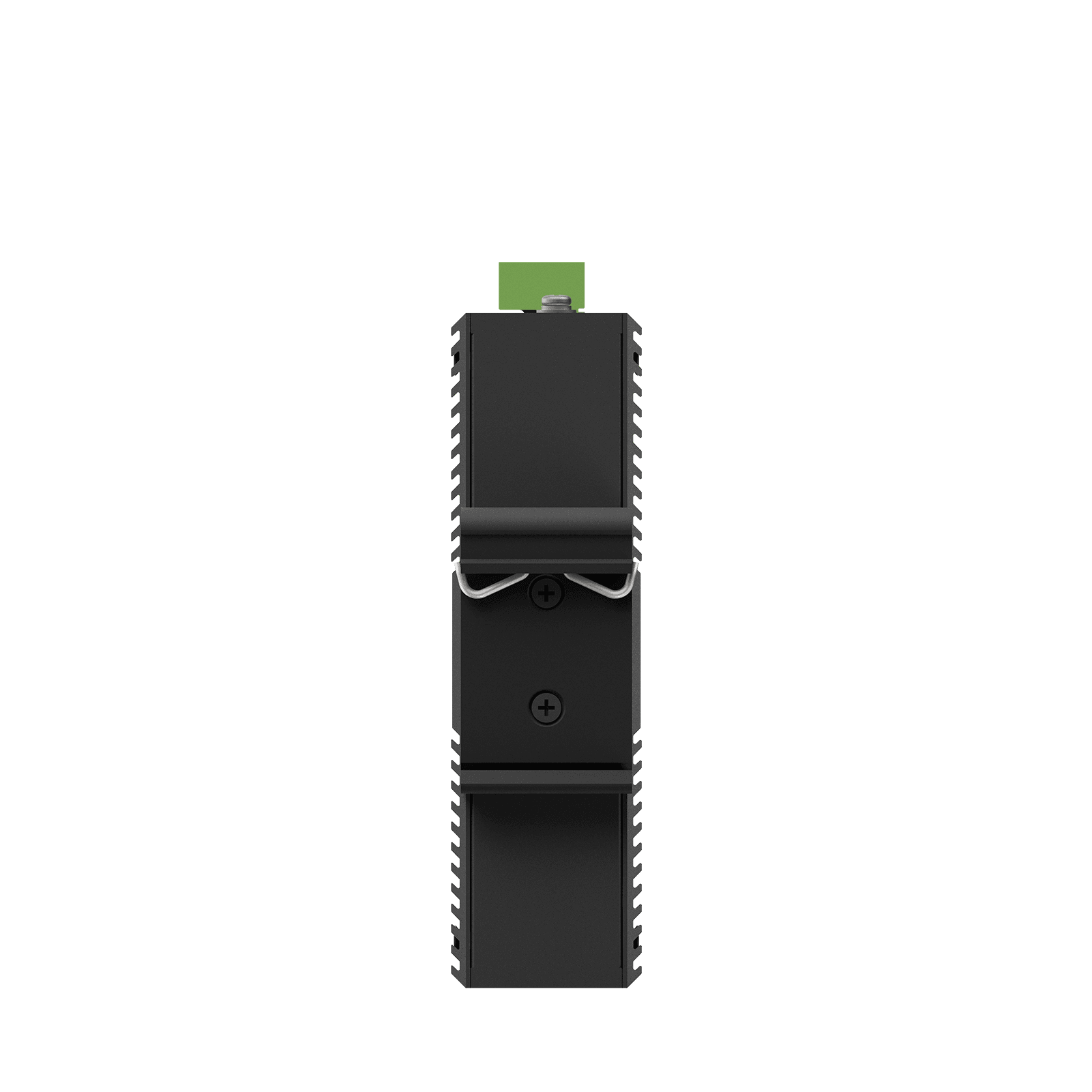

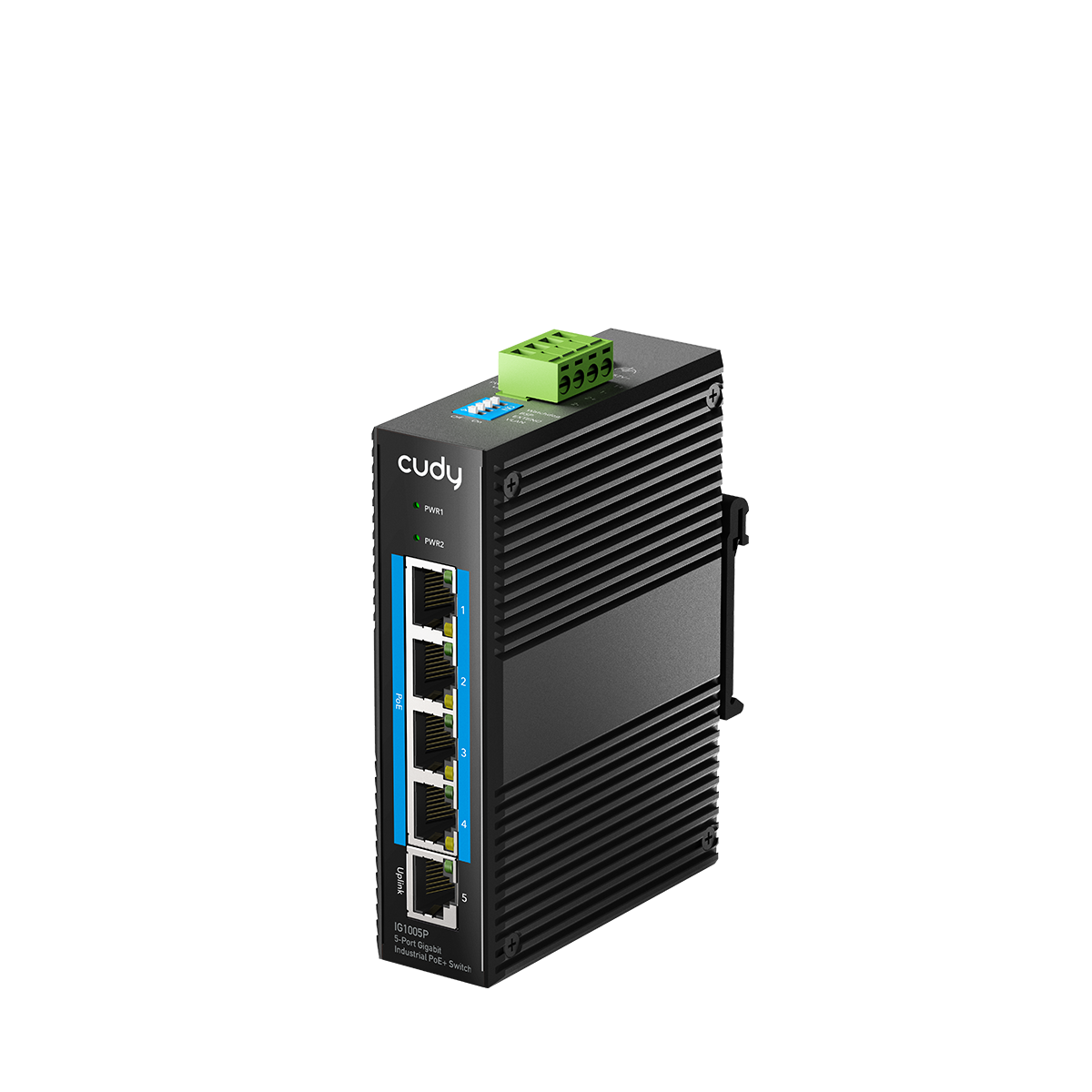

The Cudy IG1005P is a powerful PoE+ switch specifically designed for industrial environments, featuring 5 Gigabit RJ45 ports. Four of these ports (ports 1-4) support the IEEE 802.3at/af PoE+ standard, delivering up to 30W per port. With a robust aluminum housing and IP40 protection rating, the device is resistant to dust and harsh conditions and can be easily integrated into panels via DIN rail mounting. One of its key technical highlights is a 10 Gbps switching capacity and a forwarding rate of 7.44 Mpps, ensuring uninterrupted data flow even in bandwidth-intensive applications. The switch operates reliably across a wide temperature range from -40°C to 75°C. Additionally, physical buttons allow easy activation of advanced features such as PoE Watchdog, VLAN, Extend (long-distance transmission up to 250 meters), and Broadcast Storm Prevention. Dual power input support and high EMS/EMI immunity (IEC/EN 61000-4 Level 4/5) meet industrial reliability standards. This switch is ideal for networks with factory automation, security camera systems (IP cameras), wireless access points, and other PoE-powered industrial devices. The Extend mode enables devices like cameras or sensors to be placed up to 250 meters away, beyond the standard 100-meter limit. The PoE Watchdog feature automatically reboots unresponsive PoE devices, keeping your network continuously online. Technical Specifications: - Gigabit RJ45 Ports: 5 - PoE+ Ports: 4 (ports 1-4) - Max PoE Power per Port: 30W - PoE Standard: IEEE 802.3at/af - Switching Capacity: 10 Gbps - MAC Address Table: 2048 - Power Input: 44-57V DC (Terminal Block) - Max Power Consumption: 120W - Operating Temperature: -40°C ~ 75°C - Protection Rating: IP40 - Housing Material: Aluminum - Mounting: DIN Rail
