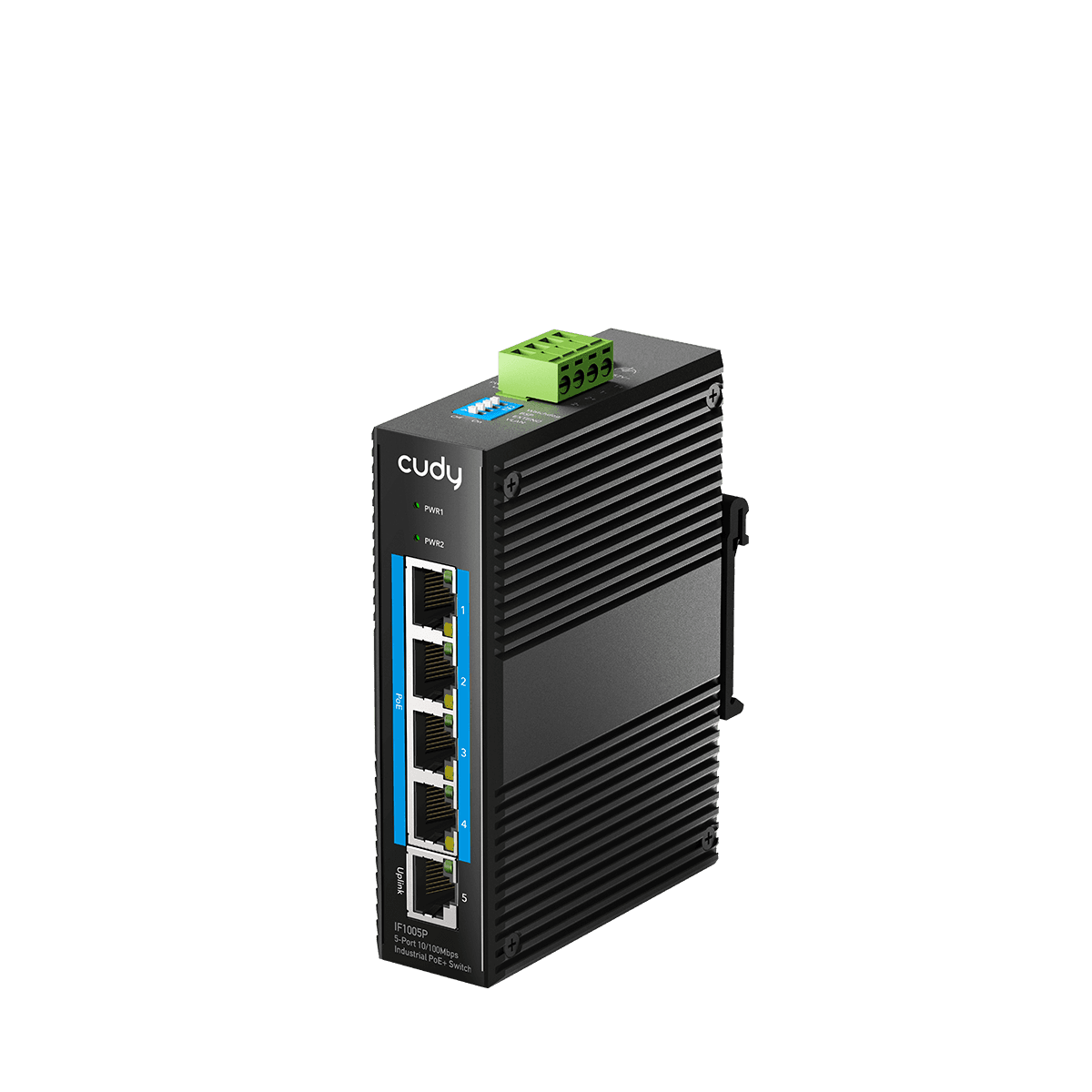

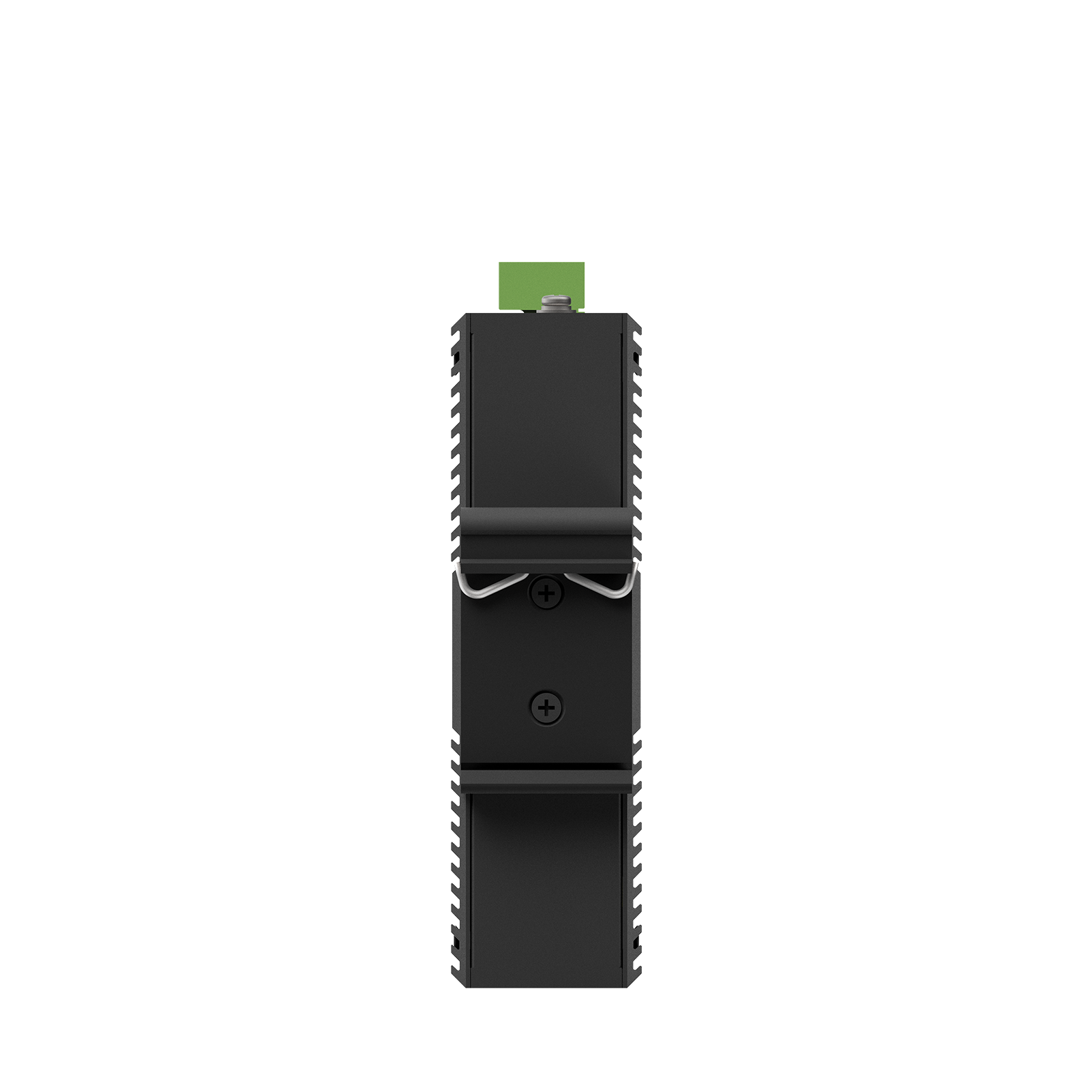

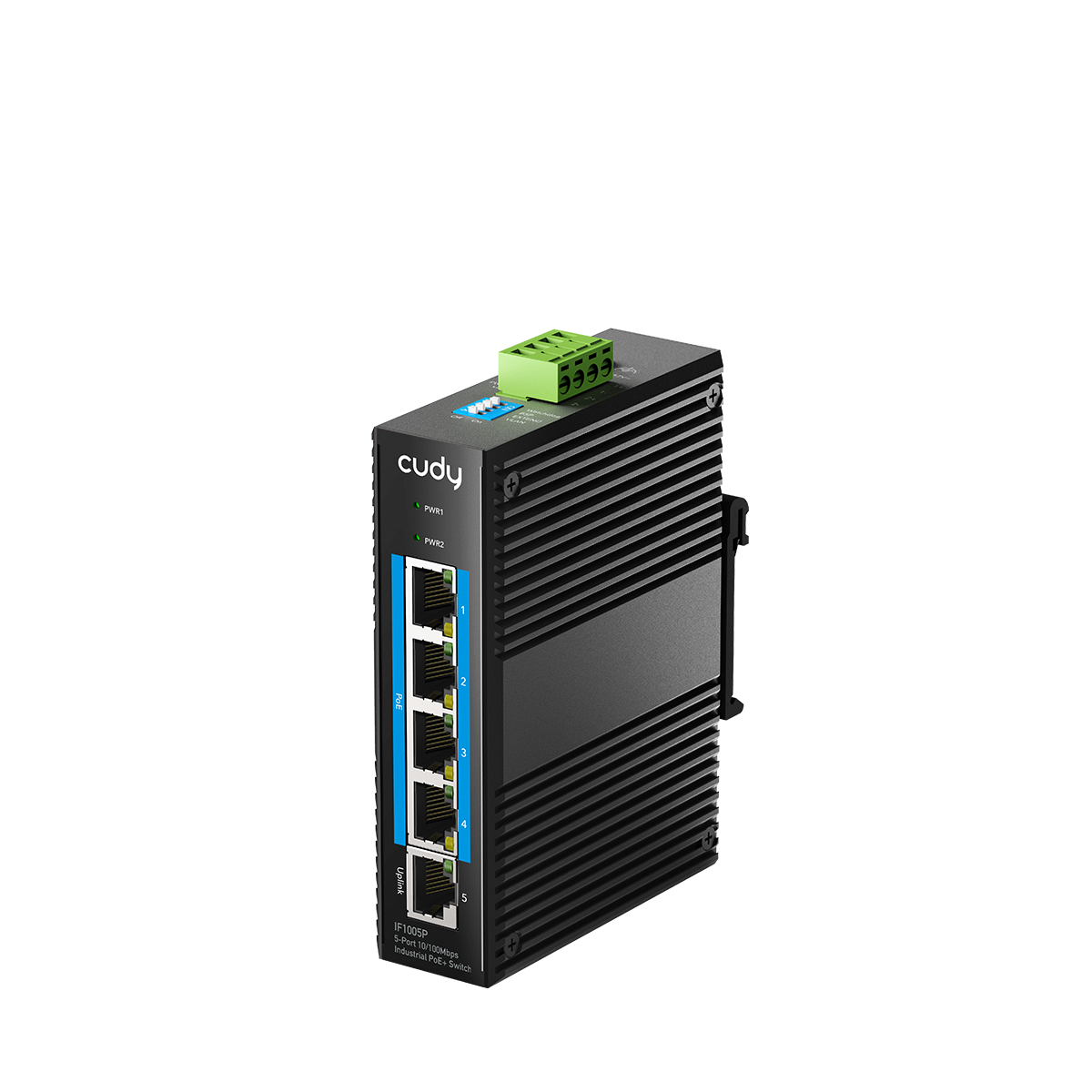

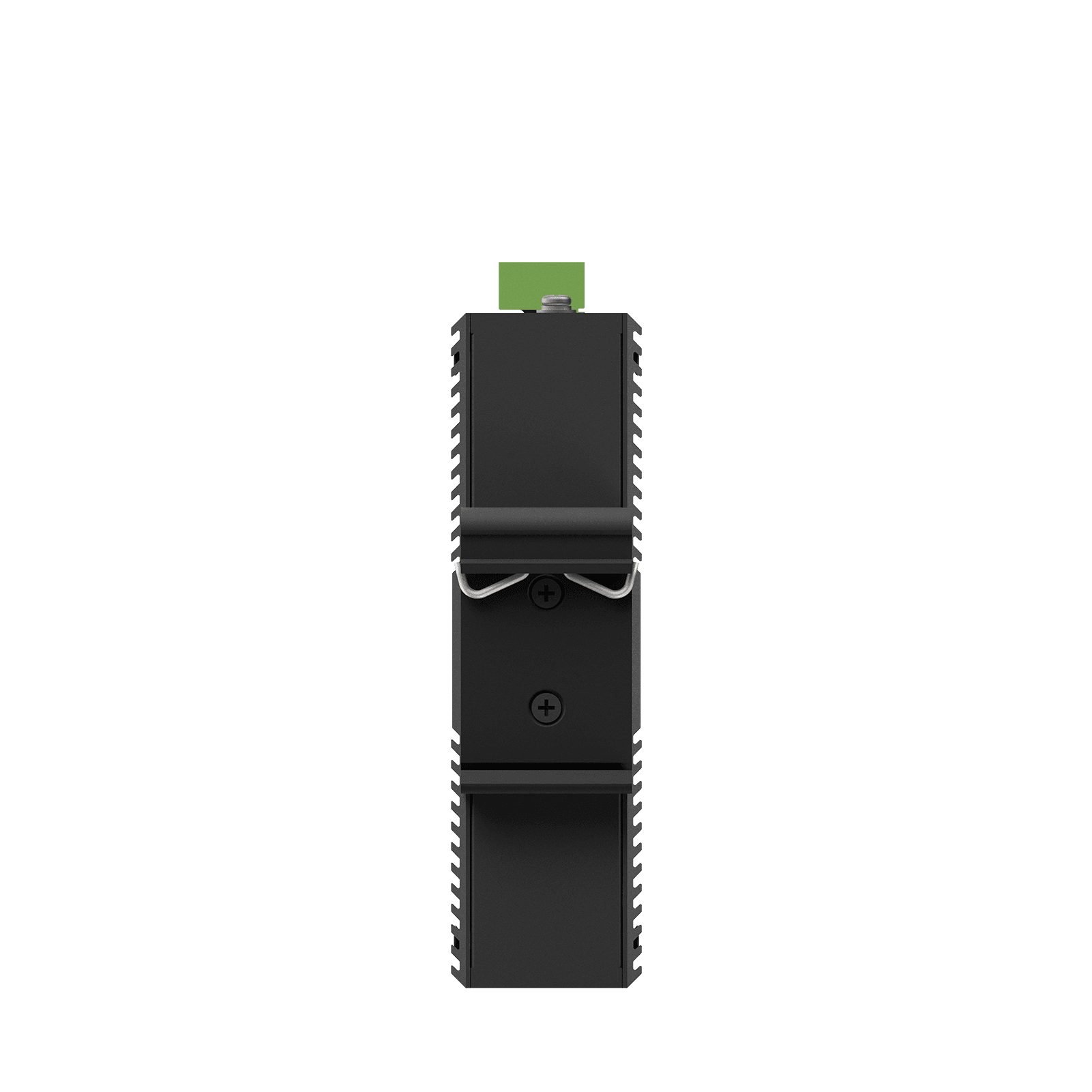

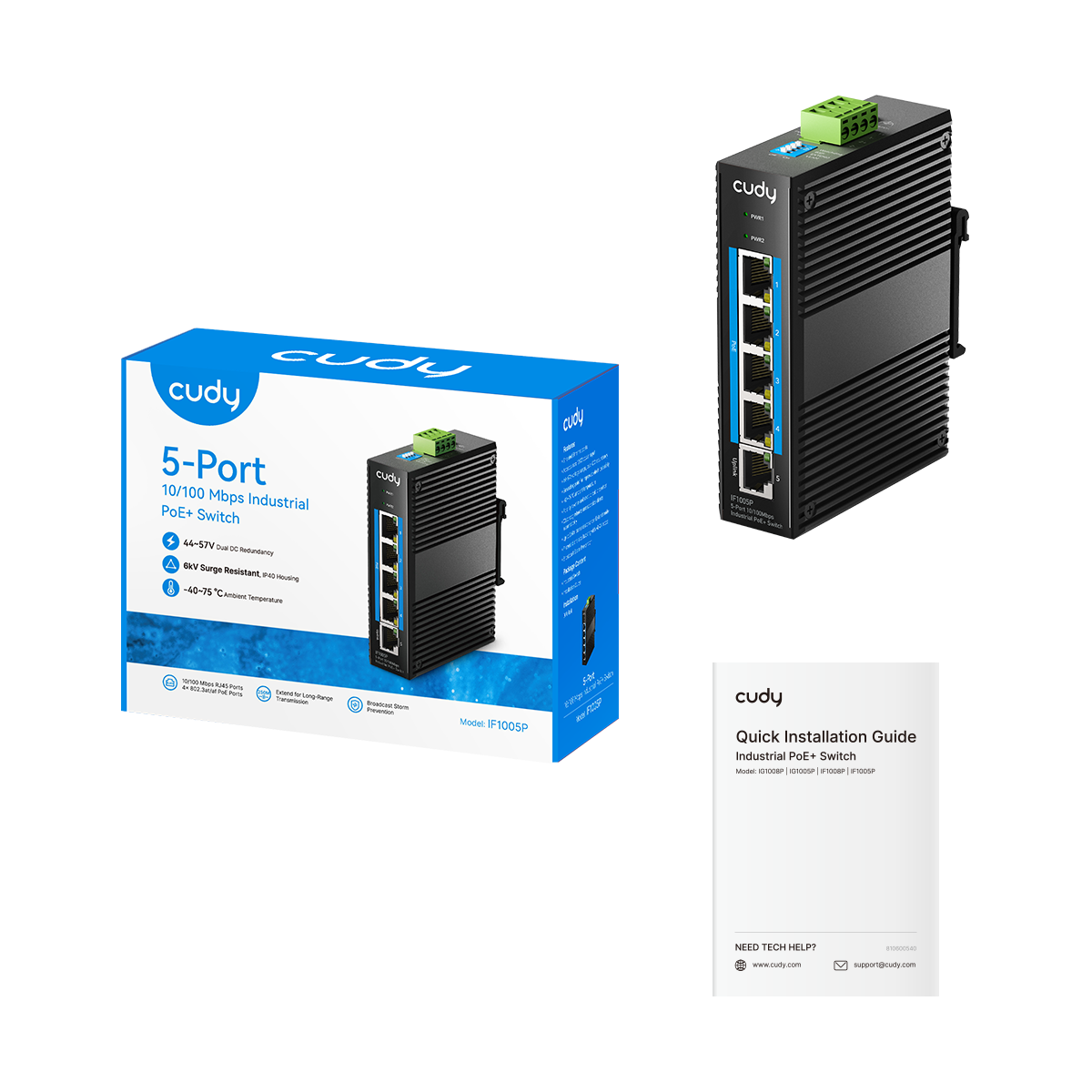

The Cudy IF1005P is a 5-port PoE+ switch specifically designed for harsh industrial environments. It features five 10/100 Mbps RJ45 ports, with the first four ports supporting IEEE 802.3at/af standards, delivering both data and power over a single cable. The aluminum housing with IP40 protection rating, wide operating temperature range from -40°C to 75°C, and DIN-rail mounting support provide a reliable network infrastructure in demanding conditions such as production facilities, outdoor cabinets, and transportation. One of its key technical highlights is the ability to supply up to 30W per PoE port. The dual power input in the 44-57V DC range allows for redundant power supply usage, increasing system continuity. The Extend Mode enables long-distance connections up to 250 meters at 10 Mbps, while the PoE Watchdog feature automatically reboots PoE devices that stop transmitting data for 5 minutes, maintaining network stability. Smart features such as VLAN mode for port isolation and Broadcast Storm Prevention to prevent network congestion are also available. The Cudy IF1005P is ideal for industrial network projects with heavy use of PoE-powered devices like IP cameras, wireless access points, and VoIP phones. In field applications such as security systems, smart city infrastructures, and factory automation, it allows devices to be powered from a central point without needing separate power sources. With its robust construction and advanced network management features, it provides uninterrupted and reliable network connectivity in challenging environmental conditions. Technical Specifications: - Port Count: 5 x 10/100 Mbps RJ45 - PoE+ Port Count: 4 (ports 1-4) - PoE Standard: IEEE 802.3at/af - Max PoE Power (per port): 30W - Switching Capacity: 1 Gbps - MAC Address Table: 2048 - Operating Temperature: -40°C ~ 75°C - Protection Class: IP40 - Housing Material: Aluminum - Mounting: DIN-Rail - Power Input: 44-57V DC (Dual Input) - Max Power Consumption: 120W
