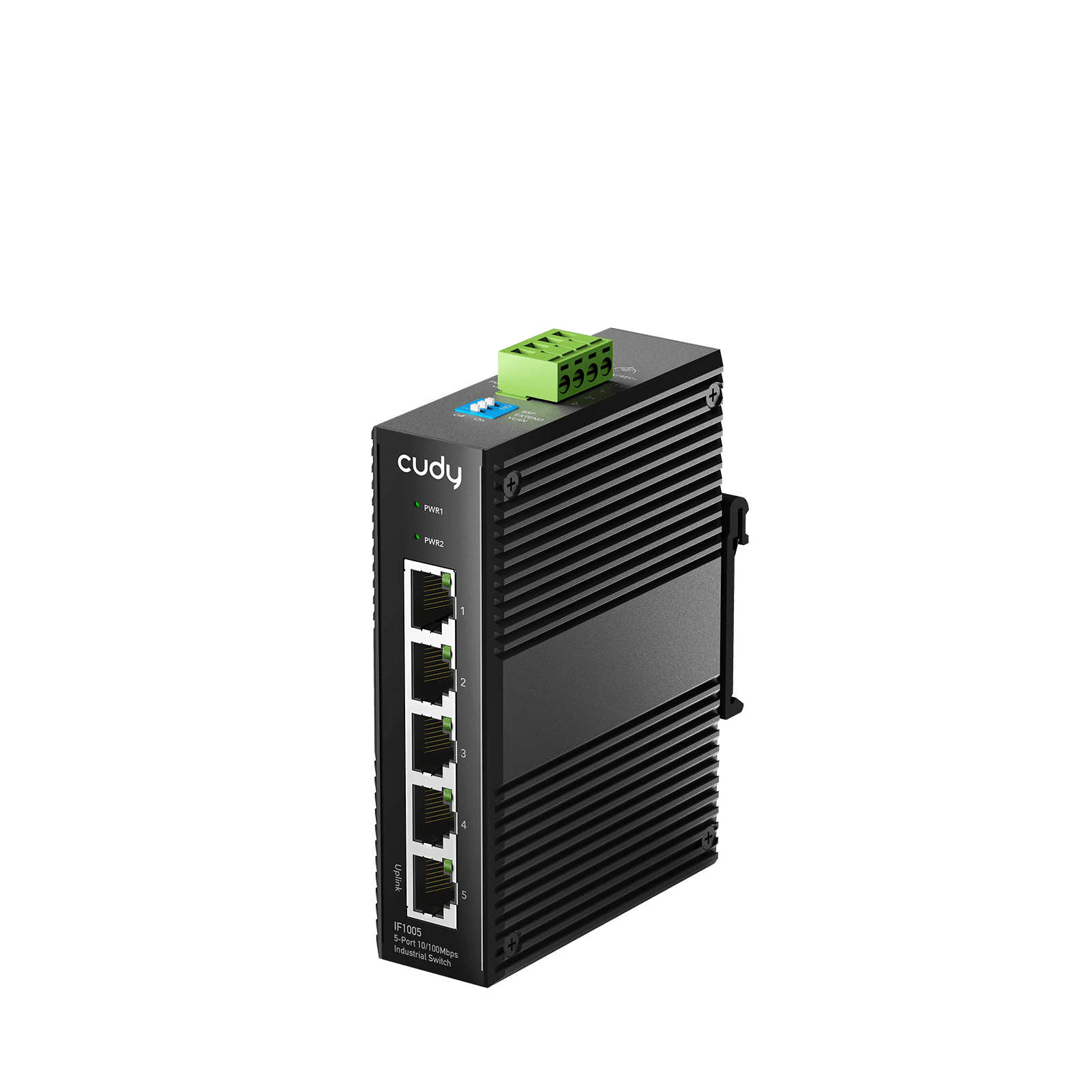

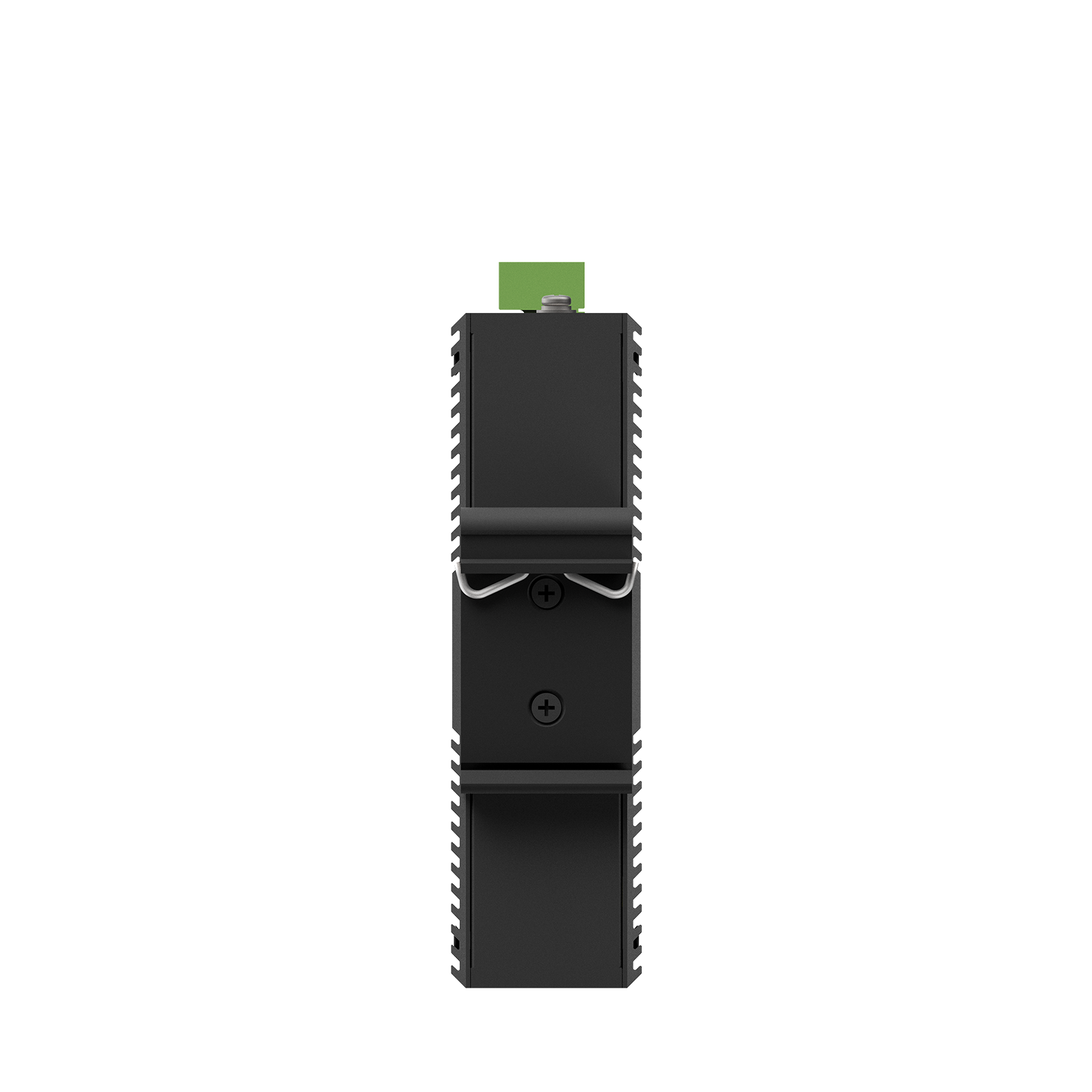

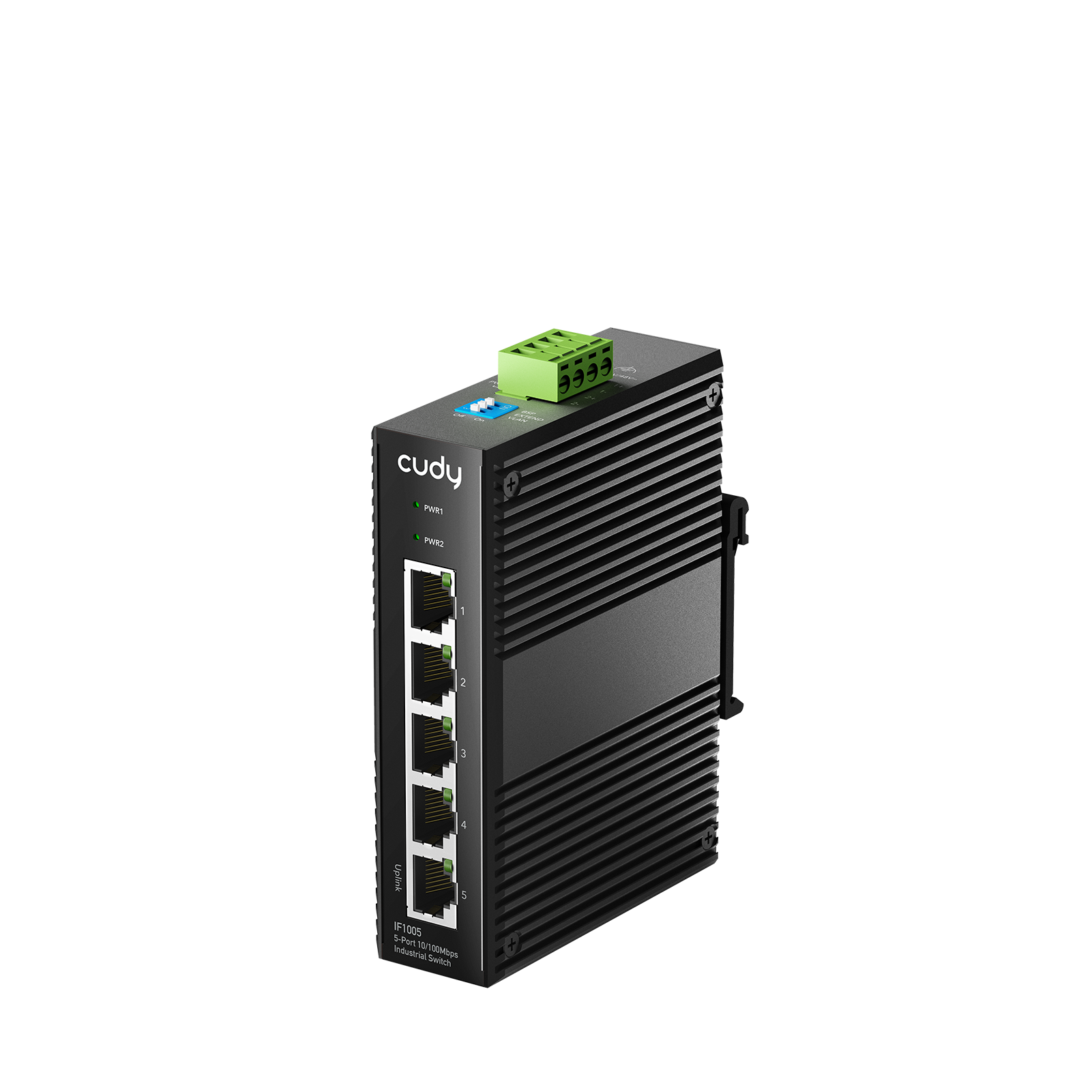

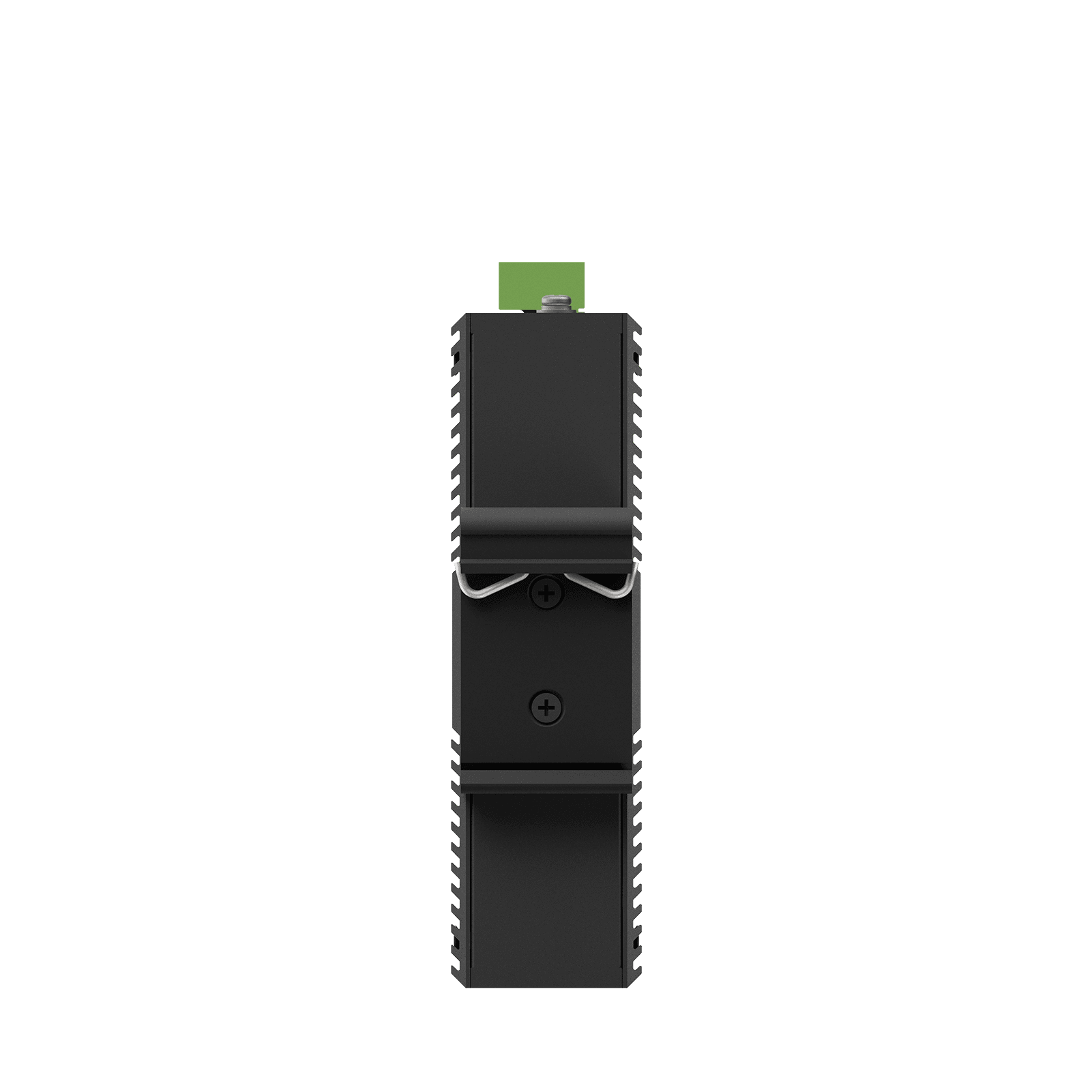

The Cudy IF1005 is an unmanaged industrial switch designed specifically for harsh environments, featuring 5 10/100Mbps RJ45 ports. Its robust aluminum housing and IP40 protection rating make it resistant to dust, moisture, and demanding operating conditions. With DIN-Rail mounting support, it can be easily installed in control panels and equipment cabinets. The device supports a wide power input range of 9.6-60V DC and offers dual power inputs for redundancy, ensuring uninterrupted operation. One of its key technical highlights is the Extend Mode on ports 1 to 4. When activated, this mode enables long-distance connections of up to 250 meters at 10 Mbps using Cat5e or higher cables. Additionally, ports 1-4 feature VLAN Mode and Broadcast Storm Prevention buttons. These physical buttons allow you to isolate network traffic and enhance network security without any software configuration. With a wide operating temperature range of -40°C to 85°C and compliance with industrial EMS/EMC standards, the device is ideal for the most demanding industrial scenarios. The Cudy IF1005 is designed for use in factory automation, CCTV security systems, intelligent transportation systems, and harsh environments such as oil and gas. The Extend Mode allows you to integrate IP cameras or sensors located far from the central office into the network without additional equipment. The VLAN Mode physically separates network segments containing sensitive data, enhancing security. With low power consumption (0.9W) and a durable construction, this switch provides a reliable and long-lasting solution for your industrial network infrastructure. Technical Specifications: - Model: IF1005 2.0 - Brand: CUDY - Port Count: 5 x 10/100Mbps RJ45 - Switching Capacity: 1 Gbps - MAC Address Table: 2048 - Forwarding Rate: 0.744 Mpps - Jumbo Frame: 2 KB - Extend Mode: Ports 1-4 (up to 250m at 10Mbps) - VLAN Mode: Ports 1-4 - Broadcast Storm Prevention: Yes (Physical Button) - Power Input: 9.6-60V DC (4-Pin Terminal Block) - Power Redundancy: Dual Input - Max Power Consumption: 0.9W - Operating Temperature: -40°C ~ 85°C - Protection Class: IP40 - Housing Material: Aluminum - Mounting: DIN-Rail - Dimensions: 33.5 x 86 x 118 mm - Weight: 310.3 g - Standards: IEEE 802.3i, IEEE 802.3u - Certifications: FCC Class A, CE, IEC/EN 62368
